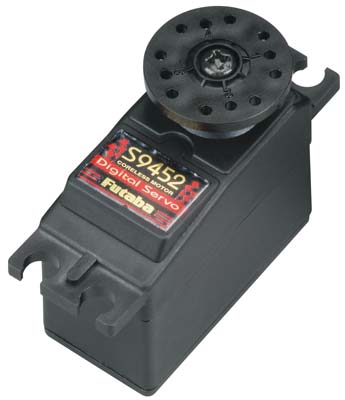

This is actually the S9452 Digital Hi-Speed.Hi-Torque Servo for many applications, particularly, On-Road Touring vehicle utilize and it is offered with "J" Connector Installed.
This servo is made to be used with 6V receiver packages.
This servo replaced the S9451 servo.
CHARACTERISTICS:
- Digitally Improved Microprocessor Cut About half the Effect Time From Transmitter Input To Servo Response.
- Coreless Motor with two ball bearings on production shaft
- Steel Gears (to change, utilize FUTM3432)
- Tall Torque
- Situation is constructed of Ebony vinyl with newly developed mounting flanges
- Dust and Water-resistant (perhaps not Waterproof)
INCLUDES:
- One Digital Car/Boat Servo w/Small Round Horn
- Two Rectangular Grommets
- Four Brass Bushings (eyelets)
- One Small Round Horn (already attached to the servo)
- One Three Supply Horn
- Order FUTM2250 if mounting screws are expected
SPECS:
- Speed: .13 sec/60?X @ 4.8V .11 sec/60?X @ 6V
- Torque: 102 oz-in (7.4 kg/cm) @ 4.8V 128 oz-in (9.2 kg/cm) @ 6V
- Weight: 1.8oz (50g)
- Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 34mm)
COMMENTS:
S9451 Digital Servo Precautions,
-It is much better to prevent long leads and Y-harnesses especially with standard grade cables. If problems are experienced, contemplate using high quality cable including Futaba's Heavy weight Series or Hobbico's Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses. Please Review These Points.
(1) when working with Systems along with the Battery Fail secure Function this has a heightened Cut-Off Voltage establishing that'll Cause Shorter Operation Time.
(2) Whenever Setting Up the Servo Please check always Pushrod Linkage to ensure There Is not any Binding to enable you to Prevent exorbitant energy usage and Decrease the Life regarding the engine and Battery.
This electronic servo can not be combined with next * will always be * transmitters due to the fact servo fundamental signal is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
For full performance of electronic servos, be sure to utilize them just with FM, PCM, and HRS systems. Don't use digital servos with AM systems.
