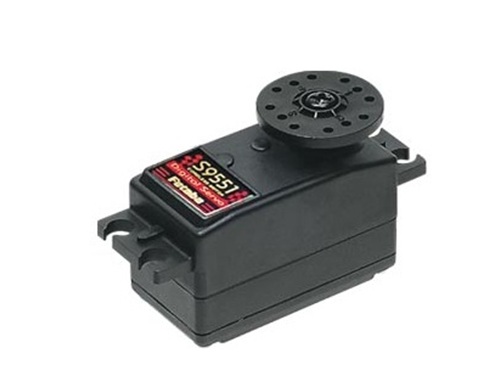

This is actually the S9551 high Torque Low Profile Digital Servo w/Coreless Motor for Aircraft and automobile usage. FEATURES:
- Digitally enhanced microprocessor cuts about half the reaction time from transmitter input to servo response
- Low profile allows the servo to suit into wings and lay down in car framework at a lower price obstruction
- Coreless engine
- Metal gears
- Twin ball-bearings
- Black synthetic situation
- Dust and waterproof (not waterproof)
- Ideal for F3A aileron application and 1/10 scale electric touring vehicle
INCLUDES:
One S9551 Digital Low Profile Servo with 0.83" (21mm) diameter circular horn, 1.7" (44mm) long T-shaped horn, four eylets, two plastic gromments (order FUTM2250 if mounting screws are expected)
SPECS:
- Speed: 0.14 sec/60?X @ 4.8V 0.11 sec/60?X @ 6.0V
- Torque: 98 oz-in (7.0kg/cm) @ 4.8V 122 oz-in (8.8 kg-cm) @ 6.0V
- Weight: 1.6oz (45g)
- Measurements: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
- Distance Between Mounting Hole Centers: 0.39" (10mm)
- Horn Screw Size: 3x8mm
RESPONSES:
S9551 Digital Servo Precautions, it is advisable to avoid long leads and Y-harnesses particularly with standard grade wires. If dilemmas are encountered, contemplate using hefty weight cable particularly Futaba's durable Series or Hobbico's Pro Series, minimizing lead lengths, and/or the removal of Y-harnesses. Present Drain: Futaba S9551 Servo is specifically created for tall- Torque and High-Speed, Therefore quite high Active Drain Is Normal At company. For Ultimate Effectiveness Whenever Utilizing This Servo, Please Review The Next Points. (1) when working with Techniques with the Battery Fail secure Function it's a heightened Cut-Off Voltage establishing that could Cause Shorter Procedure Time. (2) whenever creating the Servo Please always check Pushrod Linkage to make certain there is no Binding to be able to Prevent Excessive energy Consumption and reduce steadily the Life related to Motor and Battery.
This digital servo can't be used in combination with these * have always been * transmitters as the servo basic sign is: 1310us). CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Groundbreaking Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show. For complete performance use with FM, PCM and HR systems.
A message on Coreless machines. A regular servo engine has a steel core armature covered with with cable that spins in the magnets. In a Coreless design, the armature makes use of a slim wire mesh that types a glass that spins throughout the outside about the magnet eliminating the heavy metal core. This design will be a lot lighter ultimately causing smoother procedure and quicker effect time.
