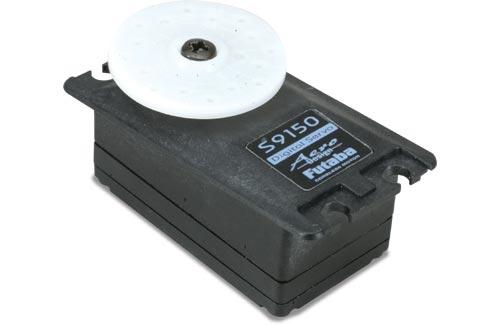

This is actually the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo can cause high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.
FEATURES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut in half the reaction time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is quite fitted to wing installations
Black synthetic case
One year guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four brass grommets, four mounting screws and two synthetic mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba doesn't recommend utilizing 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is best in order to avoid long leads and Y-harnesses specifically with
standard grade cables. If issues are experienced, think about using
heavy responsibility wire including Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or getting rid of Y-harnesses.
-Current Drain: This electronic servo is very made for high-
torque or high-speed, consequently quite high current drain is normal
at startup. For ultimate performance whenever using this servo please
review these points.
1. Broadcast systems with all the current Battery Fail Safe function have actually really a
higher cut-off voltage environment that'll cause shorter
operation time.
2. When establishing the servo, please check pushrod linkage to
make yes there is no binding in order to prevent excessive
power consumption and reduce the life of motor and
battery.
This electronic servo cannot be used in combination with the next * have always been *
transmitters because servo basic signal is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they will work fine with current AM systems *****
** no other arms will work with this particular, has a distinctive spline size.
