Futaba S3157 Servo Digital Micro High-Speed/Torque  [S3157]

QUALITIES: suitable for tiny electric planes and helicopters

INCLUDES:

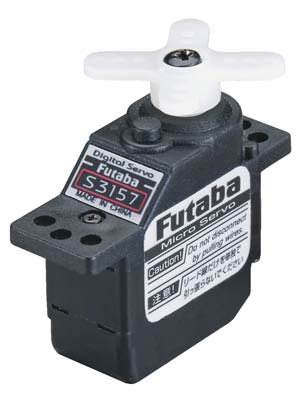

• Futaba S3157 Digital High Speed/High Torque Micro Servo with universal connector
• .71" x .79" (18mm x 20mm) 4 supply servo horn (pre-installed)
• 0.79" x 1.6" (20mm x 40mm) 4 supply servo horn
• 0.79" (20mm) diameter round horn

NEEDS:

• Installing in aircraft, linking linkage and connecting to receiver
• Purchase DUBM6924 if mounting gear can be necessary

SPECS:

• Torque: 21 oz-in (1.5 kg-cm) @ 4.8V
• 24 oz-in (1.7 kg-cm) @ 6.0V
• Speed: .10 sec/60? @ 4.8V
• 0.09 sec/60? @ 6.0V
• Size: 0.9 x 0.4 x 0.9" (22 x 11 x 23mm)
• body weight: .29 oz (8.3g)

OPINIONS:

• Additionally available with micro plug, FUTM0705.
• Not for use with gasoline driven models, large models or other models that require high torque.
• Using voltage more than 6.0V or utilizing high load toward servo will reduce its life.
• Always make use of the servo horn especially designed for this servo. Do not use conventional servo horns.
• Excessive force or surprise towards servo horn may damage the ultra mini accuracy gears inside the servo.
