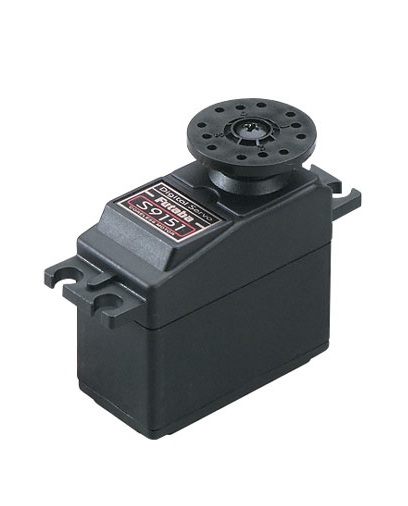

here is the S9151 Digital High Torque Rudder F3A Servo.
This might simply be properly used in conjunction with 4.8V batteries.
This servo can cause high-current draw from your own batteries.
If making use of NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response
time from transmitter input to servo response.
Digital operation allows this servo to reach complete power immediately
and protect torque longer.
High-capacity, high-current cable with low opposition.
Coreless motor (a wire cage rotates round the magnet).
High price operation for instant effect.
Dual ball bearings on output shaft.
Delivers high torque rudder operation for accuracy fixed-wing F3A
pattern aircraft.
Dust and waterproof (perhaps not Waterproof)
Black synthetic situation.
One year warranty.
INCLUDES: One S9151 Digital High Torque Rudder F3A Servo w/Futaba J Connector
a small circular servo horn
Four Rectangular Grommets
Four Brass Bushings
Four 2 x 11mm Mounting Screws
One big Round Horn
One Six supply Horn
One Four supply Horn
SPECS: Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)
fat: 1.8 oz (50g)
Speed: 0.19 sec/60?@ 4.8V
Torque: 132 oz/in (9.5 kg/cm) @ 4.8V
Power Supply: 4.8 (Futaba does not recommend utilizing 6V)
FEATURES: S9151 Digital Servo Precautions,
-It is best to prevent long leads and Y-harnesses particularly with
standard grade cables. If dilemmas are experienced, consider using
heavy duty cable particularly Futaba's Heavy Duty Series or Hobbico's
Pro Series, minimizing lead lengths, and/or getting rid of Y-harnesses.
-Current Drain: Futaba S9151 Servo is very made for high-
torque and high-speed, because of this high present drain is
normal at startup. For ultimate performance when utilizing this servo,
please review these points.
(1) Whenever using systems using the battery power fail safe function it has
a greater cut-off voltage environment that may cause shorter
operation time.
(2) Whenever establishing the servo please check always pushrod linkage to make
sure there's absolutely no binding in order to avoid extortionate power
consumption and reduce the life span associated with the engine and battery pack.
This digital servo might not be combined with the following * AM *
transmitters as the servo fundamental sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), brand new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with present AM systems *****
