Description

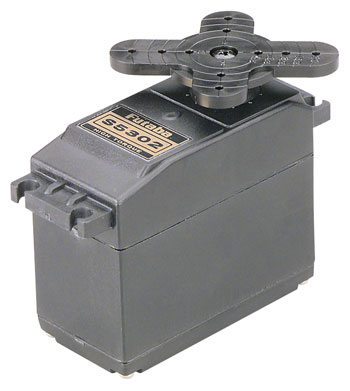

This is actually the S5302 tall Speed 1/4 Scale Servo from Futaba.
This servo can be used for R/C airplanes, sailplanes, gas vehicles and power vessels.

This servo can create high-current draw from your batteries.

If utilizing NiMH or LiPo batteries, get them to capable of delivering sufficient amps.

QUALITIES:

Double ball bearing
Metal gear
5-pole engine
High torque
Dust and water resistant

INCLUDES:

One S5302 tall Speed 1/4 Scale Servo with Futaba J male connector
Four metal eyelets
Four large Ebony one-piece rectangular synthetic grommets
Four 2 x 11mm servo mounting screws
Three servo horns (1 lg. round, 1 lg."X" and 1 sm. 6-point)

SPECS:

Speed: .19 sec/60? @ 4.8V - .15 sec/60? @ 6V
Torque: 189 oz-in @ 4.8V - 236 oz-in @ 6V
13.6 kg-cm @ 4.8V - 17.0 kg-cm @ 6V
Length: 2.3" (59mm)
Width: 1.2" (29mm)
Height: 2.0" (50mm)
Body weight: 4.4 ounce (125 grams)
Connector: Male "J" kind with approx. 5" wire
