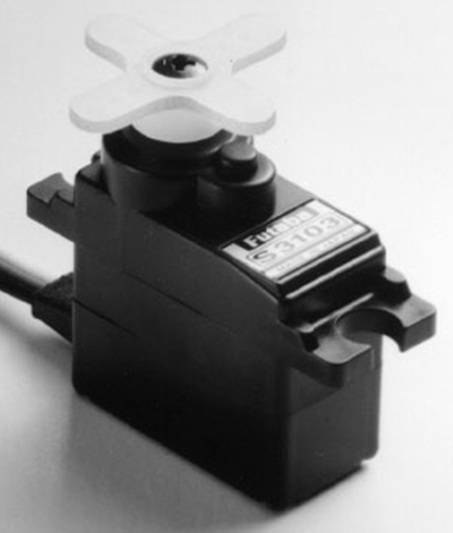

Futaba S3103 Servo Micro Mini  [S3103]

This is actually the S3103 Micro Mini Precision Servo
Designed to be used with Futaba broadcast Control Systems.
This Servo Takes the spot about the S133 Servo and contains Less Torque.

This servo can cause high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering sufficient Amps.

QUALITIES: Tiny Compact Design for Small Electric Engine Airplanes.
3-pole motor

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

OPINIONS: The S3103 Servo might not be used in combination with Gasoline engine Airplanes and
with big Gliders along with other versions that require Torque.
The Usage of a Large Load at a top Power Supply Voltage Will Shorten-
the usage lifetime. (4.8V Recommended)
The Accessory Servo Horn is made for utilize by using this Servo just.
Conventional Servo Horns Might Not Be Applied. Always utilize the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The latest delivery of the sevos are now actually coming with white servo arms, which
some customers may mistake for Hitec. They're not Hitec. They appear like they
will fit, however the customer operates the likelihood of stripping the manufacturing shaft if
they make an effort to utilize them on Hitec.
