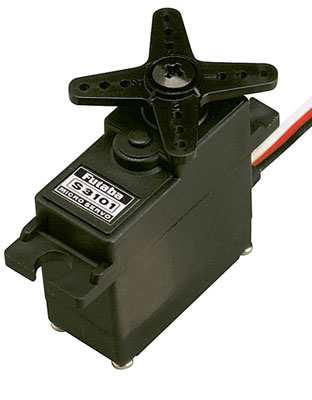

Futaba S3101 Servo Micro Precision  [S3101]

this is actually the Futaba S3101 Micro servo that replaces the S133.
TThis servo is utilized for aircraft or where the littlest servos are expected.

This servo can create high-current draw from your own batteries.
If using NiMH or Li-Po batteries, cause them to capable
of delivering sufficient Amps.

It's nylon gears 3-pole motor, and an oilite bushing.
Futaba products have actually a 1-Year Warranty against defects w/material & workmanship

SPECS Speed: .18sec/60 deg @ 4.8V - .14sec/60 deg @ 6V
Torque: 35 oz/in @ 4.8V - 43 oz/in @ 6V
2.5 kg/cm @ 4.8V - 3.1 kg/cm @ 6V
Length: 1.1" (28mm)
Width: 0.5" (13mm)
Height: 1.2" (30mm)
fat: 0.6 ounce (17 grams)
Connector: "J" type with about 5" cable

INCLUDES: One S3101 micro servo with pre-installed "x" servo horn
Two steel eyelets
Two black colored colored round rubber grommets
Two servo mount screws
Two servo horns (1 round, 1 "X" and 1 straight)
NOTE: for additional servo horns use FUTM1985

REVIEWS: ins (millimeters) .54 (13.6) flange to
Side view: 1.17 (29.7) __?-------�__ top of
bottom to top ? ? shaft
of situation (maybe not ? ? .85 (21.5) flange to
output shaft) �________? base of
1.1(28) servo

Top view: we ?-----------?
.51(13) ) * (
we ?-----------?
1.38(35)
center-to-center of holes
6/6/95axy
9-15-00 UPDATE
The latest shipment of the sevos are in fact coming with white servo arms, which
some clients may mistake for Hitec. They're not Hitec. They appear like they
will fit, however the customer operates the possibility of stripping the output shaft if
they try to utilize them on Hitec.
