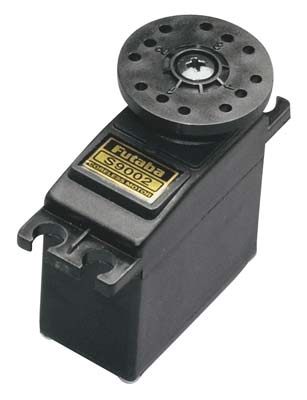

Futaba S9002 Servo Mini Coreless  [S9002]

FEATURES:

• Perfect for electric and mini cars, tiny electric airplanes and tiny electric helicopters
• Compatible aided by the Futaba GY401 Gyro (FUTM0807)
• Double ball bearings insure smooth procedure

INCLUDES: Futaba S9002 Mini Coreless Servo with 0.79" (20mm) diameter circular horn, 1.4" (35mm) diameter round horn, 1.2" (32mm) diameter 6 point horn, 1.5" (38.5mm) diameter 4 point horn and mounting equipment

NEEDS: Installing in model, connecting linkage and connecting to receiver

SPECS:

• Torque: 34oz-in (2.5kg/cm) @ 4.8V
• 43oz-in (3.1kg/cm) @ 6V
• Speed: 0.18 sec/60? @ 4.8V
• 0.14 sec/60? @ 6V
• Size: 1.2 x 0.6 x 1.2" (1-1/4 x 5/8 x 1-1/4") (31 x 16 x 31mm)
• Body fat 1.1oz (1-1/8oz) (31g)

REVIEWS: an email on Coreless motors: main-stream servo engines have a metal core armature wrapped with cable that spins in magnets. In a Coreless design, the armature makes use of a slim wire mesh that types a glass that spins around the outside of magnet eliminating the rock core. This design results in smoother procedure and quicker response time.
