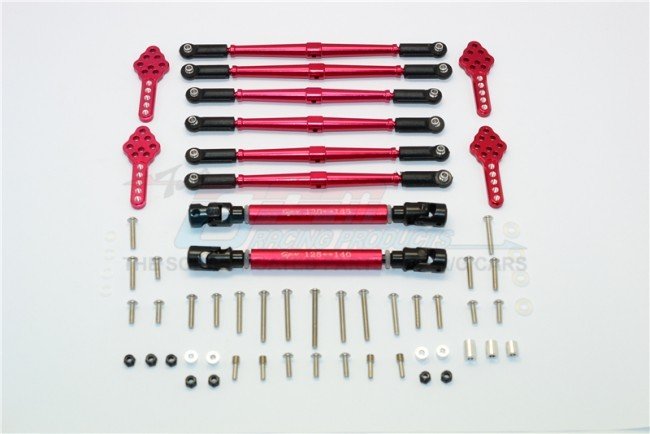

This system includes :
Stainless metal Button Head Screw
3*30 - 1pc
3*25 - 4pcs
3*20 - 3pcs
3*16 - 8pcs
3*10 - 8pcs
Aluminium Collars
3*6*4 - 4pcs
3*6*6.5 - 1pc
3*6*7.5 - 1pc
3*6*9 - 1pc - 4pcs
M4*2.5*12 Screw Shaft
O-Ring
4*2.5 - 4pcs
4*1 - 4pcs
3MM T Lock Nut - 7pcs
Product major function & use :
1. enhance the height regarding the framework, expand the crawling angle especially in complex crawling rocky landscape
2. principal Shaft is upgraded from CVD see universal swing shaft cross head to obtain a bigger angle of steering
3. According to different holes associated with the damper plate, they could be able enable the dampers become modified in a variety of height.
Lift the auto from 77mm ground clearance to 87mm ground clearance can guarantee the crawling angles be larger and in a position to face more difficult high traction landscape. This combo is preparing to connect and play. We have measured each tie pole with actually accurate dimension to avoid level of them is ideal without force during crawling.
Original height of chassis ground clearance 77mm, this lift combo gets the height of 87mm, with a 10mm height increase
Front top framework website link tie pole : Midpoint 130mm
Front reduced framework link tie pole : Midpoint 130mm
Rear paid off framework link tie rod : Midpoint 140mm
Adjustable main shaft : very long primary shaft 125mm-140mm, Quick main shaft 130mm-145mm
