Handbook volume: Decoration part

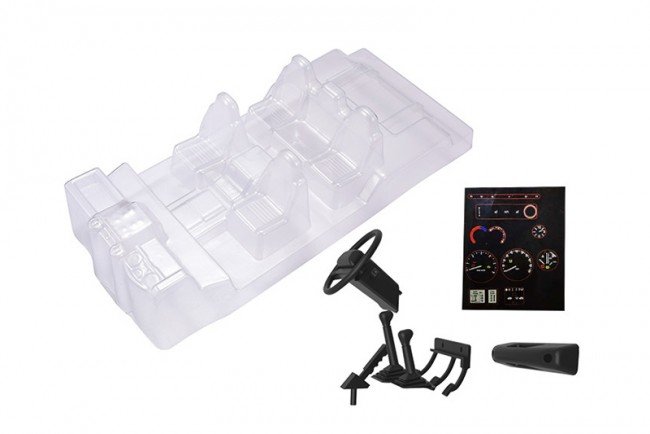

This product includes :
Interior Part-1pc
Sticker-1pc
Steering Wheel-1pc
Hand Brake -1pc
Glove Compartment-1pc
Gear Stick-1pc
Foot Brake Pedal-1pc
Product major function & usage:
Transparent in color to ensure that users to paint various colors according to choice.
Suitable for Traaxxas TRX4 Defender
The inside is right attached to the vehicle shell.
Installation Step 1
1. Before utilising the color, cut the transparent shell based on the size for the shell and cut from extra material concerning the edges.
2. Stay glued to the cutting lines to cut right out the middle additionally the chair part.
3. Try not to cut in excess. More trimming can be achieved during installation.
4. Apply color when cutting is completed. Note: Remove any oil before coloring.
5. To present more space, rear human anatomy post is preferred to be cut after coloring.
Installation Action 2
1. Once coloring is finished, spot stickers in line with the matching position.
2. Very carefully install the controls, foot braking system pedal, gear stick alongside accessories.The settings is movable, look closely at the installation means.
Installation Action 3
1. Install the main component. First, get rid of the front skid dishes.
2. Eliminate the initial screws. Look closely at in case it is level through front gear whenever putting in. Fasten the screws after adjustment.
Installation Step 4
1. Setting Up the seats. First, take away the straight back skid plates and further tire stabilizer.
2. Because of the removal of the free tire stabilizing components, in case initial extra tire stabilizer is important, please fix with a locknut.
Installation Step 5
1. Fix the middle component and seats with screws.
2. Install the key wheel and skid dishes.
3. After installation, raise the front part and rear human anatomy articles regarding the initial shell by one positioning opening. Note: Each installation can vary, raise or paid off the positioning gap if required.
