Kyosho 30560 - 1/27 MA-010 Chassis Set  [KYO-30560]

Speed and gratification in the palm of one's hand. Precision shaft-driven AWD framework produces amazing road power.

Precision diff gears on front side and backside regarding the shaft-driven AWD power train complement the 4-wheel independent suspension system for performance well beyond its size. The AWD (All-Wheel-Drive = 4WD) makes the MA-010 framework the most effective mini rushing unit for both on-road and off road surfaces. The fully put together framework comes with high performance receiver and digital servo, therefore merely link your chosen human body and hit the track! This set is packaged without transmitter making an ideal high-performance AWD addition towards MINI-Z garage.

• Packed with precision high-performance features such as mid-ship motor mount, shaft-driven AWD and 4-wheel split suspension system.
• All tires fashioned with metal shaft resin molded universal move shafts. Reliably transfers drive power and understands smooth suspension motion.
• Particularly shaped teeth on crown and pinion drives the propeller shaft within the 3 bevel gear diff gears.
• Optional components enable environment of toe-in angle on front side and backside. Tie-rods is connected / removed effortlessly for excellent upkeep characteristics.
• Drive a dropped-chassis by adjusting utilising the framework height modification collars. The 4 various pinion gears create many gear ratio settings with all the 3 various spur gears.
• front side features bump end to avoid body connection with chassis and control suspension system stroke.
• ◎Includes two sets of wheels with various width and offset.

• Ultra-fine 1/100mm finish.
• Connect / install leading diff unit with only 4 screws, and/or back diff device with 6 screws.
• 4-wheel independent suspension system features coil springtime master pin strut system.
• Produces the managed drift of superior AWD competition devices.
• Simply 5g weightier set alongside the MR-02 chassis however with AWD and 4-wheel separate suspension system.
• Chassis design understands the very least width of 65mm, ideal for numbers worthy of the 01 / 015 chassis.
• Befitting most numbers that fit the MINI-Z Racer M and L size wheelbases. (Some bodies may not be suitable).
• Designed with 4 ball bearings as standard.

Chassis Set Articles

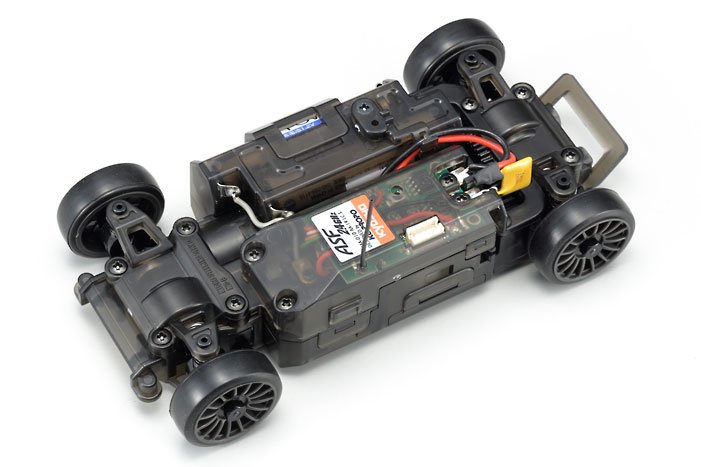

• Fully assembled framework with R/C product setup
• Pinion Gears: 4 sorts, Spur Gears: 3 types (match to 3 wheelbase settings for total of 6)
• 6 kinds of wheel establishing combinations with various offset and widths - 14 tires included (8.5mm wide tires x 4, 11mm wide tires x 2)
• Ball bearings (4)
• Chassis height modification collars
• Wheel Wrench
• Body Set, Transmitter, and batteries for framework (4 x AAA-size alkaline or Ni-MH) are typical provided separately
