Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited  [30570SP]

Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited
Price:
AUD$291.59
Brand:
Kyosho
Model:
30570SP
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review

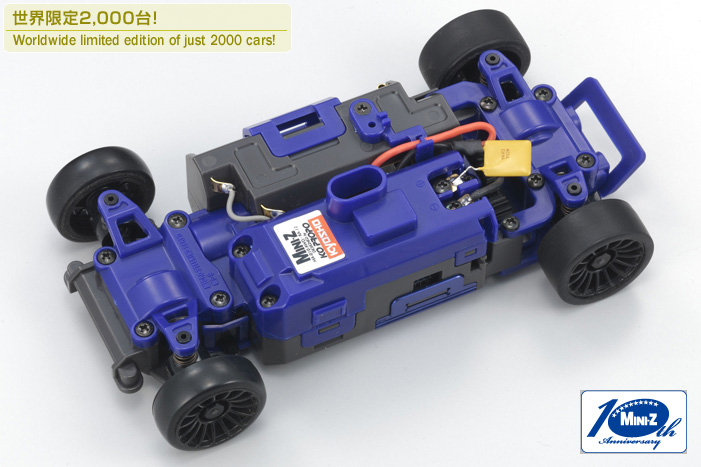

Mini-Z 10 Year Anniversary AWD!
Original kit without circuit board works together both 27MHz and 2.4GHz R/C systems!

Precision differential gears on front part and back connected with shaft-driven energy train complement the 4-wheel split suspension system inside unique kind of the Mini-Z AWD which includes complete ball bearing requirements and aluminum engine owner. Designed purely for racing performance, the AWD chassis in addition produces superb drift driving control. As this special model is produced without circuit board, you could make use of your own personal receiver-amp item and transmitter. Ideal for either 27MHz or ASF 2.4GHz units, this kit features a signature blue receiver cover amongst other unique features that mark the tenth 12 months anniversary version related to Mini-Z. Distinctive in features and gratification, just 2,000 kits will be released global causeing the AWD a specific addition towards MINI-Z collection.

＜SP Limited Special Features＞
No.MDF003GBBlue / grey SP color chassis with a high effectiveness silver plated terminals
 Specially colored receiver cover (for ASF 2.4GHz, not offered individually)
No.MZW1Ball bearing set
No.MDW007-01Aluminum engine owner set
No.MDW008Aluminum engine address
No.MDW018Ball differential set (front)
No.MDW023Xspeed V engine
 Multi offset wheels
 Nylon tires x 4
 Wide tires x 2

Required for procedure

  • Automobile Scale Collection human anatomy set for MA-010 (wheelbase M / L) *some body sets for MR-015 is also utilized
  • R/C unit / MD013 2.4GHz (ASF) or MD010 27MHz+MZW3 MZ crystal set
  • Transmitter / KT-18 (for 2.4GHz) or other manufacturer transmitters for Mini-Z (for 27MHz)
  • Batteries for transmitter
  • 4 x AAA-size batteries (alkaline or Ni-MH) for framework

Chassis Technical information
Length
127.5 mm(M)/131.5mm(L)
Width
65.0～72.0mm
Height
43.0mm
Wheelbase
90.0mm(M)/94.0mm(L)
Tread (F/R)
56.5～63.5mm / 56.5～61.0mm
Tire(F/R)
Φ25.0mm � 8.5mm / Φ25.0mm � 8.5mm, 11.0mm
Gear Ratio
7.2, 6.4, 6.0, 5.7, 4.3, 5.0, 4.5 : 1
Weight
130g (approx.)
Motor
Xspeed　V Engine
