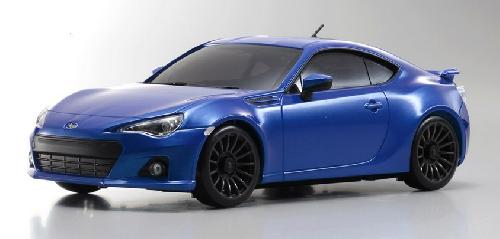

Kyosho 32151MB - MA-020 ASF BCS Subaru BRZ Metallic Blue Body/Chassis ASF 2.4Ghz Set [32151MB]

Price:

AUD$389.51

Brand:

Kyosho

Model:

32151MB

GTIN:

4548565232031

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

Description

Due to the accuracy control faculties regarding the shaft drive AWD, the MINI-Z AWD has captured the imagination of micro race fans around the globe. Now with all the MA-020 chassis, performance is rolling out to a level higher-level. Appropriate for almost all MINI-Z figures, the incorporation concerning the MR-03 front suspension framework minimizes change towards driving characteristics when wide tread environment is required. As an example, wheel down set ended up being useful for wide tread numbers, but on 020 chassis this is often accomplished by changing the suspension system arm and move shaft, which minimizes extortionate modification towards the scrub radius and significantly lifts cornering performance. Among the list of key top features of the MR-03 chassis is ‘VCS’ (variable camber suspension) that optimizes camber change in concert with suspension system system stroke for effective hold and traction. The proven backside DWS (double wishbone suspension system system) is standard and combines with all the current revitalized front suspension system system to reach free and accurate control. The gyro, previously simply available as an optional change, is roofed too. While appreciating the performance of hold tires, a set of drift tires can be included for an entirely various driving experience. The receiver product includes RA-23T/FET featuring Chase Mode function. Chase Mode could possibly be set and so the overtake key can simply be properly used a certain number of times per model (optional No.82080/I.C.S. USB adapter and computer are anticipated). This allows anyone to make use of a handicapping system by limiting how many price bursts each car could use, permitting novices to compete on a much more also footing with experienced drivers. Obviously this model also works together the earlier ASF 2.4GHz 2-channel transmitter for the MINI-Z Racer. As this set is loaded without transmitter, it is suitable for present owners of ASF 2.4GHz MINI-Z Racers and makes a cost-effective 2nd if not 3rd addition towards MINI-Z model lineup. The MA-020 framework combines groundbreaking front side suspension with a DWS unit to supply a brand new standard in AWD touring automobiles to assist you experience.

TECHNICAL DATA

Length: 127.5(M)-135.5mm(L)
Width: 65-72mm
Height: 43mm
Wheelbase: 90(M)-98mm(LL)
Tread (F/R): 56.5-63.5mm / 56.5-61mm
Tire(F/R): 25.0 (offered separately)
Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
Weight: 120g (approx.)
Motor: 130-class motor

KIT ARTICLES

Factory assembled framework with R/C unit installed
Pre-painted factory assembled synthetic human body completed with markings
Grip tires (put up)
Drift tires (included)
Pinion gear (15T, 17T, 19T, 21T)
Spur gear for wheelbases: 27T, 29T, 31T each for M, for L, for LL
Parts for changing wheelbase
elements set for changing tread
Rear suspension system system spacers for chassis height modification
Pinion gear device
free nut
Wheel wrench
Pairing stick

NECESSARY FOR PROCEDURE

3-channel transmitter for MINI-Z suitable for ASF 2.4GHz or Perfex KT-18 transmitter (and even utilising the Chase mode)
AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
Batteries for transmitter
I.C.S. USB adapter (No.82080) to make usage of I.C.S. functions and Chase Mode modification.
*Note: Overtake function might use R246 2.4GHz module adapter it really is not guaranteed with transmitters apart from Kyosho or KO 3-channel transmitters. Additionally, the 2-channel KT-18 transmitter can be utilized without Chase Mode.
