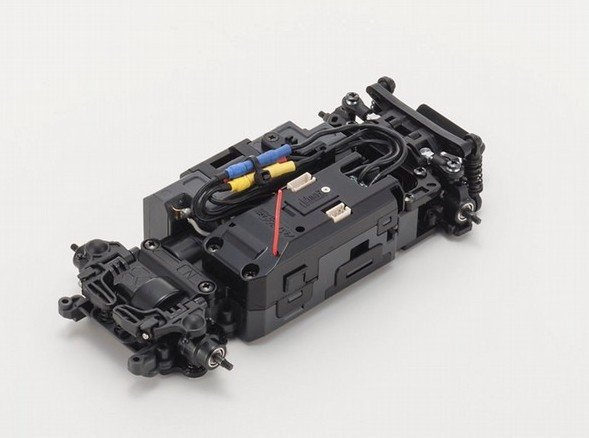

Kyosho 32170 - MA-020VE PRO Chassis Set Mini-Z AWD  [KY-32170]

The latest MINI-Z AWD framework evolves into the PRO course!

Brushless motor power and AWD was developed the MA-020VE recently and is evolving with a brand new higher rate RC device installed. Aided by the technical the different parts of 1st MA-020VE create, the brand new variation features similar MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system applied to the MR-03VE professional. The blend of brushless engine power and AWD aided by the fastest control effect available makes this revolutionary product the best spec in its show. The MHS 2.4GHz system was made to be used aided by the latest high-end SYNCRO EX-6 transmitter (offered individually) and offers effect 16 times faster when compared with ASF 2.4GHz system and KT18 transmitter combination, and 4 times quicker set alongside the KO EX-1. With faster processing speed and superior servo keeping power, you are going to locate lines through corners like never before. Linear control feel plus the unique AWD traction performance provide you with the ultimate side in battle competition. Whilst the framework matches the MR-03VE PRO, it's suitable for today's ASF 2.4GHz system so owners of KT-18 and KO PROPO EX-1 transmitters can immediately setup during pairing.

• The much-anticipated MA-020 framework set installed with brushless motor has showed up. Shaft drive AWD produces a development in driving performance.
• 8500kV XSPEED VE brushless engine that delivers drive capacity to all four tires may be the perfect match the AWD framework.
• Newly designed receiver target features area for the optional gyro to be effectively bolted on and eliminated.
• DWS features downstop device, ball-connected system on suspension system system shafts and friction damper that utilize oil to regulate amount of damping force.
• VCS optimizes camber relative to suspension system system stroke to provide sure-footed traction and grip.
• Brushless engine create on AW-020 framework as standard function.
• Incorporates the ‘VCS’ front suspension system from MR-03.
• Features rear double wishbone suspension system (DWS).
• Comprehensive ball bearing requirements consist of 14 ball bearings.
• Designed with top cover appropriate setting up the optional gyro.
• ASF2.4GHz R/C system removes need certainly to manage frequency bands. *Transmitter offered separately.
• Up to 40 automobiles might be run at exactly the same time.
• Ultra fast sign processing rate leads to almost instantaneous control response.
• Shipped pre-assembled in slim tread and M size wheelbase setup.
• Includes parts for changing to wide tread and elements for changing to L and LL wheelbases.
• Other establishing modifications could be made utilizing I.C.S. USB adapter (sold separately).
• Using the narrowest 65mm chassis design, numerous MINI-Z 01/015 body designs are set up.
• Factory set steering with zero point specifications.
• Control timing of reverse is adjusted.

Chassis Set Articles:

• Factory assembled framework with R/C product set up
• Pinion gears (15T, 17T, 19T, 21T)
• Spur gears for wheelbases: 27T, 29T, 31T for M, L, and LL correspondingly
• Parts for changing wheelbase
• Parts set for changing front tread
• Pinion gear device
• Spare peanuts
• Wheel wrench

Necessary for procedure:

• ASF 2.4GHz KT-18 transmitter or MHS 2.4GHz EX-6 transmitter
• Car Scale Collection (human body set, tires, tires)
• 4 x AAA alkaline batteries or 4 x Ni-MH for framework
• 4 x AAA alkaline batteries for transmitter

Chassis Technical Suggestions:

• Length: 126mm
• Width: 65mm
• Height: 28.5mm
• Wheelbase: 90(M)-98(LL)mm
• Tread (F/R): 65-76mm/65-76mm
• Tire(F/R): F25 x 8.5mm/F25 x 11mm(offered separately)
• Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
• Body weight: 130g (approx.)
• Engine: 8500kV XSPEED VE Brushless
