Kyosho 32780 - MINI-Z ASF 2.4GHz MR-03VE JSCC Blue Limited sho 50th Anniversary Specification  [32780]

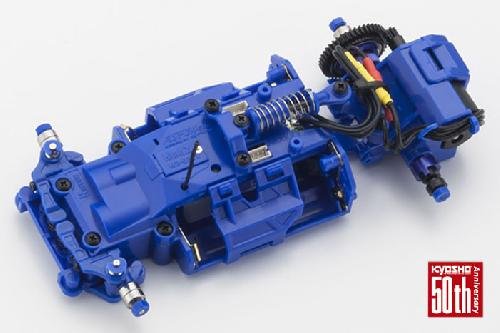

Vivid blue colored framework and framework elements mark the MR-03VE Blue Limited 50th Anniversary Chassis as a particular unit. Featuring its brushless engine demands the MR-03VE framework competes at greatest degree inside the popular JSCC program linked to the MINI-Z Cup. In addition to the ECO Tuned VE motor’s motorist friendly traits, comes the reliability and high torque of brushless motor performance. Inside temperature of JSCC course race battle, these advantages can provide the benefit. This restricted version with full bearing requirements is delivered on very same expense while the current chassis set. Additionally, the framework permits an optional gyro become bolted on and it is appropriate for all human body designs (someone designs require additional elements). Download the free ICS VE Manager software applications through the Kyosho website and step-by-step settings might be modified (adaptor offered separately will become necessary). Advanced functions and technology prepare the motorist as well as the device for future development. Utilising the MR-03VE Blue Limited 50th Anniversary Chassis, there is the true essence connected with rushing experience.

Priced exactly like the prevailing framework set, this model features complete ball bearing needs to provide high efficiency and low opposition for JSCC course competition.

• Pre-assembled MR-03VE N-RM framework set fitted with ECO Tuned brushless motor.
• distinctive version blue color finish.
• Complete ball bearings, ball diff, silver plated battery terminals included as standard.
• RM engine mount and slim tread demands.
• Includes MM motor mount and front tread replacement parts.
• Compatible using the majority of human anatomy designs. (Some systems need extra parts)
• Upper cover allows optional gyro to be easily fitted.
• Appropriate for number of optional parts for the MR-03 framework.
• Revolutionary front suspension system system design adjusts camber with suspension system swing.
• ASF 2.4GHz system immediately manages regularity bands. ※Transmitter offered separately
• Digital steering servo featuring coreless engine.
• Spring stopper is set up or removed with only 2 screws.
• Tall conductivity silver plated battery power terminals.

  ＜ Kit articles ＞

• Pre-assembled MR-03VE N-RM chassis fitted with ECO Tuned VE brushless engine
• One-piece RA-27 receiver with ICS connector and brushless motor circuit board
• MM motor mount conversion components
• Front part lower and top plates, steering tie-rod for wide tread.
• Front suspension system modification spacer
• 7T, 8T and 9T pinion gears
• Wheel wrench
• Pinion gear tool
• Pairing stick
• Spare wheel peanuts

＜ required for Operation ＞

• ASF2.4GHz PERFEX KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• Auto Scale Collection (human anatomy set, tires. tires)
• 4 x AAA-size alkaline or NiMH batteries
• 4 x AAA-size alkaline batteries for transmitter (KT-18), 8 x AA-size alkaline batteries (EX-5UR)

Chassis Technical Information

• Size
  124 – 133mm (MM Chassis:125 – 133mm, RM Chassis:124 – 132mm)
• Width
  65 – 76mm
• Height
  35mm
• Wheelbase
  86 – 106mm (86,90,94,98,102,106)
• Tread (F/R)
  (Wide)61.5mm/59mm (Narrow)56.5mm/56.5mm (whenever Wheel Offset=0)
• Tire(F/R)
  23.5 – 25 x 8.5mm (offered separately) / 25 – 27 x 8.5-11mm (available individually)
• Gear Ratio
  7.3, 6.3, 5.5, 4.9 : 1
• Weight
  135g (approx. without body)
• Motor
  ECO Tuned VE Brushless
