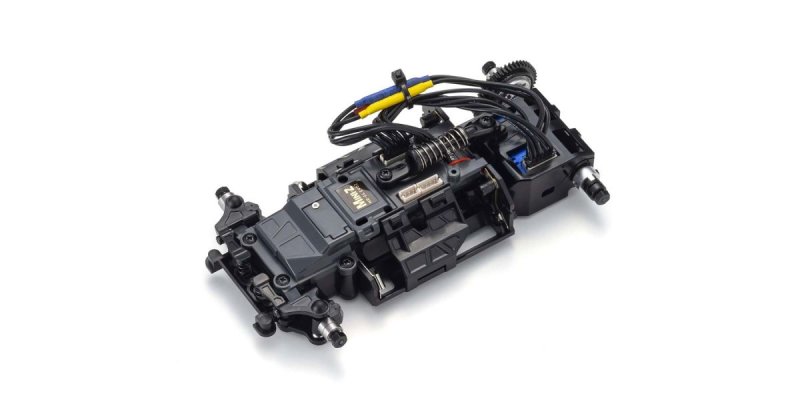

Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)  [KY-32891]

- While keeping elements of the superb MR-03 design, the latest MR-04EVO2 framework achieves significant performance improvements with modifications on front suspension and a lesser C of G that work with synergy with a sensored brushless motor. Both narrow and wide tread settings can be obtained by changing the paid off and top plates inside front part along with the steering tie rod. Adjustable wheelbase allows framework establishing relative to real stature.

- While camber angle is optimized during cornering aided by the move about the present top supply design, the leading suspension system makes use of the newest kingpin-integrated knuckle to boost camber security. Geometric modification of caster and trail an such like. provides more linear maneuverability. Brand new spec front side springs the MR-04 with various hardness is available as options.

- Front knuckle design features incorporated kingpin with optimized approval aided by the kingpin ball for smoother procedure. Ball bearings have been changed to 3mm interior diameter for paid off rotational resistance.

- All 7 ball bearings are 3mm interior diameter for lower rotational opposition to attenuate friction loss.

- New potentiometer provides accuracy and durability with a totally redesigned steering system to appreciate the top effect and accuracy in track record of the MINI-Z. The higher level of precise steering control program allows various settings utilizing the MR-04’s exclusive I.C.S. software.

- Ball differential included as standard optimizes the rotational differences when considering remaining and right rear tires when switching. Additionally provides moderate slip action to boost traction whenever excessive load is employed. Silver clear anodized complete to aluminum parts creates a formidable style to check performance.

- the latest product furthermore supports high-speed interaction with various high-end transmitters and receivers to comprehend unprecedented control response. Achieves transmission rates of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba products (EVO2 mode). *Previously 2.6ms ~ 3.0ms

TECHNICAL DATA

• Length 124.5mm
• Width 72-76mm
• Height 31mm
• Motor Mount MM
• Wheelbase 98.0mm (LL)
• Tread(F/R)63.5-65.0mm/61.5-65.0mm
• Gear Ratio 7.3/6.3/5.5/4.9:1
• Weight 135.5g (Body / tires / wheels maybe not included.)
• Motor KYOSHO SPEED HOME XSPEED 56 (KV5600)

KIT CONTENT

• MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOME KV5600 brushless motor
• Parts set for changing front part tread
• 6T/7T/8T/9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts

REQUIREMENT TO PERFORM

• Transmitter
• Receiver unit (appropriate EVO/EVO2)
• ASC
• AAA x 4 batteries for chassis
• Batteries for transmitter
