Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A  [KY-33020]

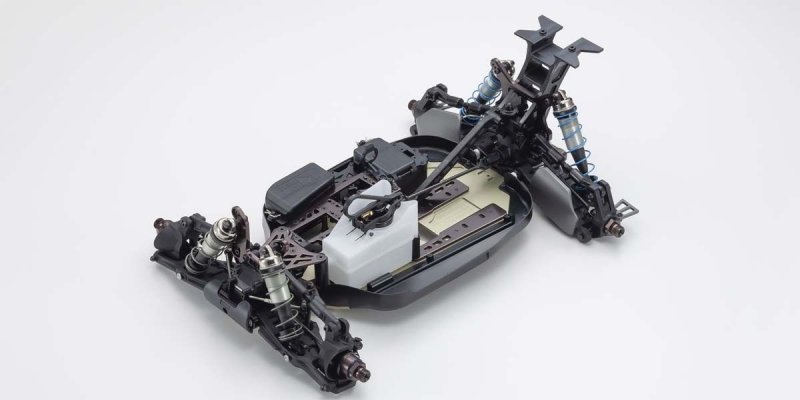

Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A
Price:
AUD$0.00
Brand:
Kyosho
Model:
KY-33020
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Nitro Powered category
Write a review
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"

The peak of 1:8 scale off road buggy racing may be the IFMAR (International Federation of Model car Racing) World Championship, won by the Kyosho INFERNO an archive 8 times. The INFERNO is definitely the equipment against which all others are determined, plus it proceeded considering that the standard in design and satisfaction aided by the launch of this MP9 in October 2008. The INFERNO has evolved with all the groundbreaking MP10 to maintain its dominance throughout the forefront of competitive R/C race. The culmination of 10 years of relentless R&D by designer Yuichi Kanai has triggered a trove of data the development of the MP10 in to the strongest and most higher-level 1:8 device the RC market has ever seen. Yuichi Kanai’s MP10 embodies a virtually new design for maximum performance utilizing the high hold tires and areas which are for that reason prevalent in R/C battle, to supply next-level performance well in excess of the MP9. The many newly-designed components offer additional power and rigidity for increased durability and reliability: main framework; radio plate; one-piece straight back wing mount; suspension system system arms; suspension system shafts; front and back shock towers and much more. To obtain towards top of the podium, the latest MP10 provides you every advantage.


Key elements like Big Bore Shocks and gear diff had been assembled by expert Inferno staff and each device is physically analyzed by the Inferno’s designer, Yuichi Kanai. Just install the RC system and motor and you'll be ready for action with advanced off-road racing products ever built.


  • Installing R/C system including receiver and servos and connection of linkages
  • Painting of human body and accessory of decals
    (Body is pre-cut but requires opening of parts to fit your range of engine mind and exhaust).
  • Tires and inners have to be bought individually and glued to wheels.
  • Installation of engine, clutch, manifold and muffler. Construction and installation of piping, linkages and air cleanser.
  • Wing assembly and installation.

    • TECHNICAL INFORMATION

  • Length 490mm
  • Width 307mm
  • Height 180mm
  • Ground approval 28mm
  • Wheelbase 328mm(4 settings with rear hub collar spot changes)
  • Tread (F/R) 254mm(3 back settings with with bush changes)
  • Tires (F/R) provided separately
  • Gear Ratio 11.7: 1
  • Weight 3,360g (approx.)
  • Engine 21 Class (provided separately)

    • KIT ARTICLES

  • MP10 pre-assembled framework kit
  • Special wheels
  • Pre-cut clear body
  • Wing
  • Fuel tube
  • Linkage parts
  • Clutch parts
  • Logo decals
  • Manual

    • REQUIRED FOR PROCEDURE

  • 2ch, 2 servo R/C system for cars
  • 21 course engine
  • Muffler & manifold
  • Tires & inners for 1/8 buggy
  • Fuel
  • Fuel container
  • Plug heater
  • Starter box
  • Batteries for R/C system
  • Oil for air cleanser (No.96176 HG air cleanser oil is recommended)
  • Paint for body
    •
