Kyosho 34423 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset ALPINE GT4 [KY-34423]

Price:

AUD$0.00

Brand:

Kyosho

Model:

KY-34423

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

Description

The pure enjoyment of R/C vehicle driving, the mixture of a beautifully reproduced car human body utilizing the FAZER show chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it an entire model makeover with developed performance to a fresh degree. A simplified design with less parts has enhanced maintenance effectiveness and paid down fat while core power and rigidity is actually increased through new materials and ribbing and stiffeners on front part and back. Besides, the symmetrical chassis design synergizes exceptional front-rear balance through suspension system with responsive control, aside from power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and complete ball bearing requirements, the high durability and effect opposition enables motorists to unleash the total potential of framework. Brake disk wheel hubs with two different offsets (0mm, +5mm) offer compatibility with 190mm and 200mm width human anatomy styles and permits the wheelbase become adjusted to 274mm by changing some elements (offered independently) for compatibility as well as other 1/10 scale human body designs, as well as the human body included. The Readyset package comes completely come up with and includes everything except charger and battery the framework, and batteries the transmitter.

●“Ultra Scale Body” replicates the fine information on the specific body regarding the vehicle. Kyosho took a step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package just requires 4 x AA alkaline batteries the transmitter, and battery pack with charger the chassis.
●Equipped with 2-bevel grease-filled gear diffs on front and back.
●Large size dog bones and cup joints comprehend superior reliability and durability.
●Belt mounting battery compartment permits various battery power types to be used.
●Full ball bearings that decrease drive loss prepared through the drive system.
●Features KS202W waterproof steering servo.
●Includes entirely completed human anatomy with color scheme and decals utilized.
●Sealed differential and transmission deliver reliable performance, also on dusty parking great deal areas.
●Performance might be further enhanced by installing different optional parts.

New framework understands low center of gravity along side its simple, practical design. Featuring a built-in gearbox that optimizes torsional rigidity with this primary chassis, the nylon product decreases fat while increasing impact resistance. Each key component had been strengthened inside easy design without top deck.

Features a lower life expectancy amount and selection of screws and components, and consolidation of widely used screws into the exact same size. Numerous screws are flat head screws that can easily be eradicated with a 2.0mm hex wrench for effortless disassembly.

managing factors such as for example bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle guarantees reliable control motion. Interchangeable on both front side and back left-right hub providers optimize free components utilization and enhance upkeep effectiveness.

Includes choice of two offset braking system disk wheel hubs with dummy calipers (for visual styling) offering compatibility with 190mm and 200mm body widths.

New design oil shocks mark an evolutionary intensify from previous models Oil surprise is newly created. Optimal front-rear geometry and stability on top of that provides both light handling and exact control.

Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be employed from 29T – 37T to produce a myriad of gear ratio settings. The modern fixed gear mesh engine mount has holes to be used with every different pinion gears. Merely install the engine right to the space areas corresponding towards pinion gear. No gear mesh modification is important.

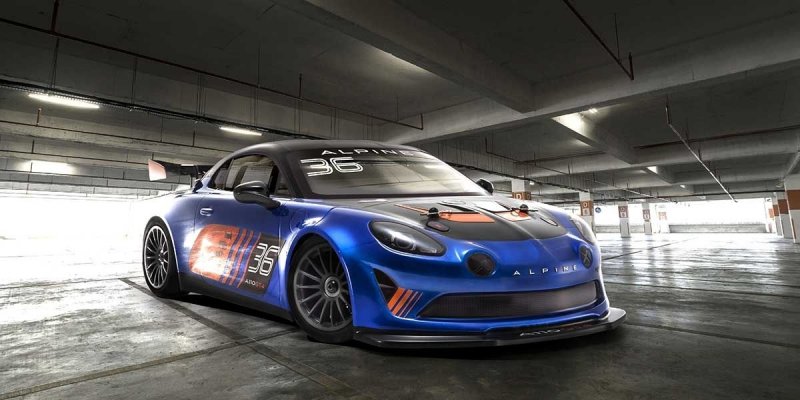

After a 40-year hiatus, ALPINE revealed the modern A110 within Geneva Motor Show in March 2017. With a motorsports legacy in Le Mans 24 Hour Race as well as the World Rally Championship, ALPINE revived its famous tasks coupe to meet the FIA-GT4 rules. The complex 3D model of the GT4’s styling featuring a large front side spoiler and back wing is immaculately recreated in 1/10 scale.

Original low-profile semi-slick pattern tires create superior performance and complement 15-spoke wheels for stunning visuals.

Comes because of the new effective 550 size 14T brushed motor(G14L). The long will with metal ring round the motor instance and interior cooling fan provides efficient torque and high speeds.

TECHNICAL INFORMATION

Length460mm
Width200mm
Wheelbase260mm
Tread (F/R)F:184mm/R:184mm
Tires (F/R)F:φ66×25mm/R:φ66×25mm
Gear Ratio6.5:1
Weight1620g (approx.)
R/C system Syncro KT-231P+
Motor G14L

KIT CONTENT

Completed chassis with R/C radio installed
Factory put together human anatomy detailed with color scheme
Syncro KT-231P+ transmitter
Installed 60A waterproof electronic price controller (forward/brake/reverse)
Hexagonal wrench
Spanner

REQUIREMENT TO RUN

4 x AA batteries for transmitter
Battery for chassis (recommended: 7.2V Ni-MH battery)
Charger for battery pack for chassis
