The FAZER Mk2 Readyset is made for the pure satisfaction of R/C car driving. Now available as a framework kit, owners have actually in fact the flexibleness to include unique human body and R/C system. Specifications have been elevated with optional components including HD TC center shaft S and TC universal swing shaft L to improve the unrivaled symmetrical design and front-rear suspension system balance with this lightweight chassis for R/C racers to savor. As the deckless design seems effortless, a minimal number of elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves impact resistance. Having its unique design, the FZ02 framework embodies features and gratification that could appeal to R/C drivers of most levels.

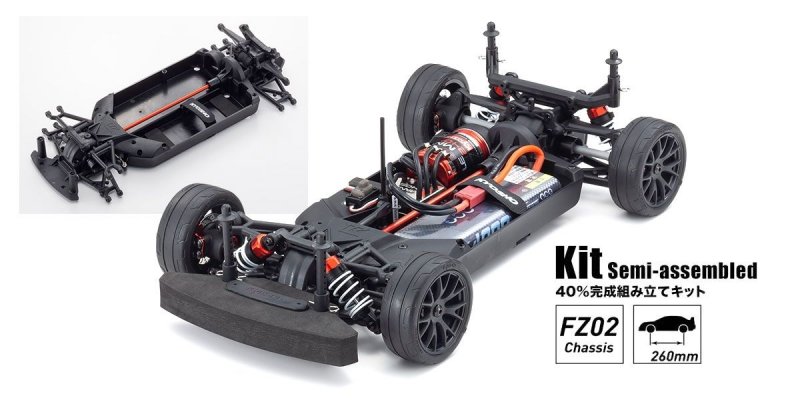

40percent pre-assembled (shocks and diff gears aren't packed with oil so installation is finished to favored environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front side & rear stiffeners and rib reinforcement at key sections of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft in the Readyset. And smoother driving transmission, the red anodized color has striking appearance. Included aluminum dish protects the engine from dust and provides effective heat dissipation, particularly into the temperature of summer time race.
TC Universal swing shafts L (FAW202) regarding forward drive part don’t drop on hefty contact like dog bone tissue muscle shafts. Besides, the move shafts deliver consistent drive transmission even though joint are in a broad steering angle.
A particular resin transponder mounting stay is included for as soon as the framework is contending in battle occasions. You don't need to produce a handmade stay or holes within the body to match a transponder.
Included body mounts enable bodies from various manufacturers become fitted. Additionally, two different brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with different human anatomy kinds.
Oil shocks and springs optimize the front-rear geometric security, delivering both light managing and precise control. (Silicone oil the shocks is sold separately)
Bump steer and scrub radius, the 2 facets aided by the best effect on control, have now been optimized regarding front suspension. Interchangeable front-rear and left-right hub carriers improve components effectiveness and maintenance.
Included original low-profile semi-slick pattern FAT701M TC Tire (M), inner sponge and FAH701BK Wheel (unglued), offering superior performance.
Built with Front and right back light buckets right for optional 97054 LED Light unit which are often offered separately.
By setting up the LED light device, improves scale realism for human body shell.
TECHNICAL DATA
- Length (Body Size) 375mm(464mm)
- Width(Body Width) 200mm /190mm(207mm)
- Ground clearance 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: φ66mm x 25mm/R:φ66mm x 25mm
- Gear Ratio 6.54:1
- Total space for storing fat Approx. 1,490g (with 7.4V4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human body)
- body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- FAH701BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO PERFORM
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended services and products No.82138/82151
- 540-550 course engine *Recommended products No.37031/37032
- ESC appropriate motor used(Size:L36xW32xH23mm or less)*Recommended things No.37051
- Survo *Recommended products No.82273
- Battery charger
- Battery for framework ideal for ESC used(SIze:L145xW47xH25mm or less)*Recommended products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended things F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate body
- Tools
