The FAZER Mk2 Readyset is made for the pure satisfaction of R/C automobile driving. Available these days as a chassis kit, owners have really the flexibleness to include their human anatomy and R/C system. Requirements had been elevated with optional elements such as for instance HD TC center shaft S and TC universal move shaft L to boost the unrivaled symmetrical design and front-rear suspension system security about the lightweight framework for R/C racers to take pleasure from. Although the deckless design seems simple, a reduced wide range of elements improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon product further reduces fat and improves effect opposition. Having its unique design, the FZ02 framework embodies features and performance that'll interest R/C motorists of all quantities.

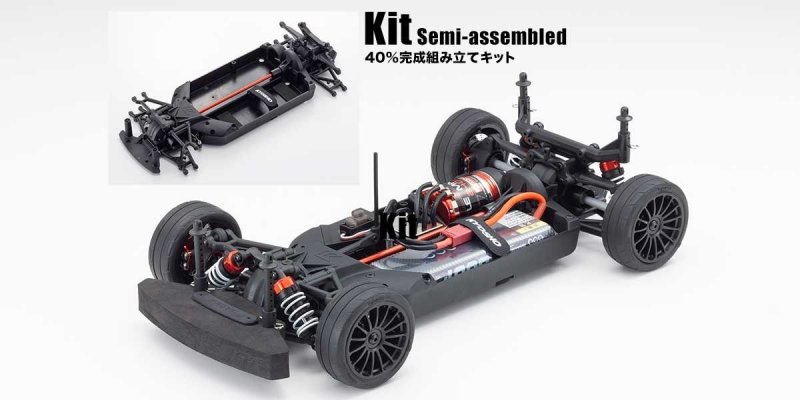

40percent pre-assembled (shocks and diff gears aren't filled up with oil therefore put up could possibly be completed to favored environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front side & rear stiffeners and rib reinforcement at key chapters of framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft contained in the Readyset. Including smoother driving transmission, the red anodized color has striking visual appeal.
TC Universal swing shafts L (FAW202) concerning the front drive part don’t drop on heavy contact like dog bone tissue shafts. In addition, the move shafts deliver constant drive transmission although joint are at a broad steering angle.
A specific resin transponder mounting stay is included for when the framework is contending in competition tasks. You don't have to produce a handmade stay or holes in the body to suit a transponder.
Included human anatomy mounts enable systems from various manufacturers become fitted. Also, two various brake-disk wheel hubs enable 190mm and 200mm chassis width settings for compatibility with different human body kinds.
Included aluminum dish protects the engine from dust and provides effective temperature dissipation, especially in the heat of summer season rushing.
Oil shocks and springs optimize the front-rear geometric security, delivering both light handling and accurate control. (Silicone oil the shocks is sold individually)
Bump steer and scrub radius, the two factors utilizing the greatest impact on managing, have already been optimized into the front suspension system. Interchangeable front-rear and left-right hub providers improve components efficiency and maintenance.
Original low-profile semi-slick pattern tires and interior sponge (FAT701M) match 15-spoke black colored colored tires for improved rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: 66mm x 25mm/R:66mm x 25mm
- Gear Ratio 6.54:1
- Total storage area fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40per cent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- human body mounts for different manufacturers figures
- FAT701M TC Tires(M)
- interior Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO OPERATE
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151
- Body
- 540-550 course motor *Recommended services No.37031/37032
- ESC appropriate for motor used(Size:L36xW32xH23mm or less)*Recommended products No.37051
- Survo *Recommended services No.82273
- Battery charger
- Battery for framework suitable for ESC used(SIze:L145xW47xH25mm or less)*Recommended products and services No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended products and services No.96162
- Silicone OIL(for Diff)*Recommended services F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate human body
- Tools
