The FAZER Mk2 Readyset was created for the pure satisfaction of R/C car driving. Available nowadays as a framework kit, owners have actually really the flexibleness to include their human anatomy and R/C system. Demands have already been elevated with optional parts like HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system security about the lightweight framework for R/C racers to take pleasure from. While the deckless design appears easy, less volume of elements improves maintenance effectiveness and optimizes torsional rigidity. Incorporation of nylon product further decreases fat and improves impact resistance. Along side its unique design, the FZ02 framework embodies features and gratification that could attention R/C motorists of most levels.

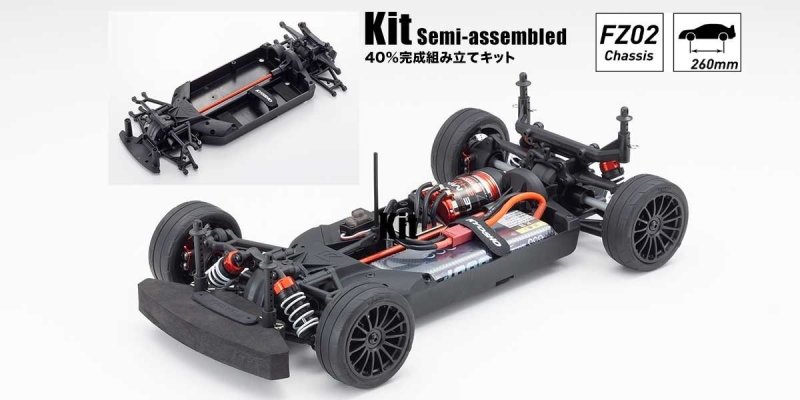

40% pre-assembled (shocks and diff gears are not filled up with oil so construction are finished to favored environment). The FZ02’s effective low center of gravity design compliments the high power and rigidity realized through front & right back stiffeners and rib reinforcement at key chapters of this framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft included in the Readyset. Along with smoother driving transmission, the red anodized color has striking looks.
TC Universal swing shafts L (FAW202) inside front drive part don’t fall on heavy contact like dog bone shafts. Besides, the move shafts deliver consistent drive transmission even if joint is at a thorough steering angle.
Included human anatomy mounts enable systems from different manufacturers become fitted. Besides, two various brake-disk wheel hubs make it possible for 190mm and 200mm framework width settings for compatibility with different human anatomy kinds.
Included aluminum meal protects the motor from dirt and effective heat dissipation, specially to the heat of summer months competition.
Oil shocks and springs optimize the front-rear geometric security, delivering both light managing and accurate control. (Silicone oil for the shocks is sold separately)
Bump guide and scrub radius, both factors along with the greatest affect maneuvering, have now been optimized in the front suspension. Interchangeable front-rear and left-right hub organizations improve elements effectiveness and maintenance.
Original low-profile semi-slick pattern tires and inner sponge (FAT701M) match 15-spoke black colored tires for enhanced rushing appeal.
TECHNICAL INFORMATION
Length 375mm Width200mm/190mm Ground approval 8mm (approx.) Wheelbase 260mm Tread(Body width:190mm)F:164mm/R:164mm Tread(Body width:200mm)F:174mm/R:174mm Tires F: ?66mm x 25mm/R:?66mm x 25mm Gear Ratio 6.54:1 Total storage area fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
40% pre-assembled chassis FAW202 TC Universal Swing Shaft S FAW209 HD TC Center Shaft S Aluminum Motor Dust Plate Transponder mounting stay +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy) +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human body) Body mounts for different manufacturers bodies FAT701M TC Tires(M) Inner Sponge VZH003BK Wheel 1.5/2.0/2.5mm Hexagonal wrench 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO RUN
2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151 540-550 course motor *Recommended products No.37031/37032 ESC compatible with motor used(Size:L36xW32xH23mm or less)*Recommended items No.37051 Survo *Recommended products No.82273 Battery charger Battery for framework right for ESC used(SIze:L145xW47xH25mm or less)*Recommended services No.GAB4201 4 x AA batteries for transmitter Damper Oil *Recommended products No.SIL0400-8 Grease(for Ring Gear & Diff)*Recommended products and services No.96162 Silicone OIL(for Diff)*Recommended products and services F:No.SIL50000/R:No. SIL3000 Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine ) Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine ) Paint for polycarbonate human body
