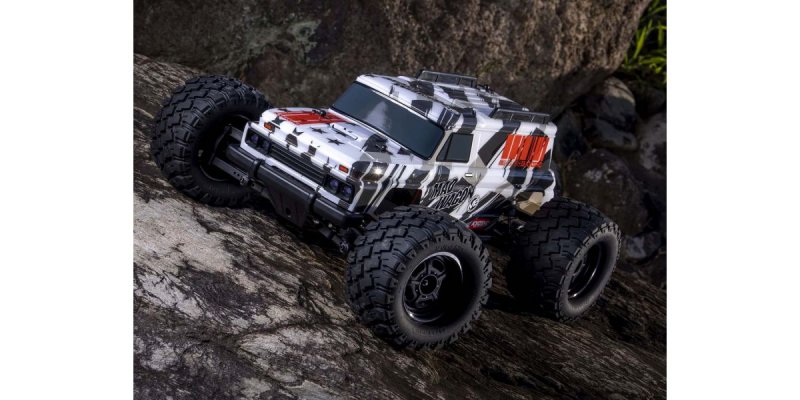

Kyosho 34701T1 - 1/10 EP 4WD KB10W MAD WAGON VE Color Type1  [KY-34701T1]

The Monster Truck, otherwise referred to as ‘Basher’ category, continues to grow in appeal over numerous generations. With a vehicle human anatomy attached to a difficult chassis and big diameter tires, monster vehicles including R/C model variations, are made to go involving the badlands to arena courses. Now the Mad Wagon VE sets a distinctive style on a brute R/C machine! This new KB10 4WD framework design works together with 3S (11.1V) high-power lithium polymer (LiPo) batteries and features a newly developed brushless engine and speed controller as standard. Delivering an optimal stability of high-speed and power, the aluminum primary chassis about the KB10 combines front/rear obstructs integrating a split framework and double wishbone suspension system system to work a car the all-terrain 2.8” tires and tires. Because the tire measurements are suitable for standard wheels, you can vary requirements to accommodate the type of road area and conditions. In addition, drivetrain components are distributed towards the 1/8 scale Inferno NEO ST 3.0, supplying sufficient convenience of a 1/10 scale unit. The first 1980’s design van human body design is stated in ‘Ultra Scale’ realism. Once the human body contained in the kit is pre-painted, you could make your own custom human body coloring design with a clear human anatomy additionally elevating the realism due to the optional Light-emitting Diode light item (No.97054-4B). The Mad Wagon VE is loaded as a pre-assembled Readyset and requires just batteries for the chassis and charger to have ready to go. An array of optional elements can be obtained to expand and expand your satisfaction for the R/C vehicle pastime.

● Readyset includes pre-assembled framework, painted body, and RC system with pistol hold Syncro KT-231P + transmitter
●Features effective brushless motor device that reaches a maximum rate of 75km/h. RC system may also be pre-installed
●contains initial design wagon-type human anatomy. There Are Two Main Principal color variations, and a certain human anatomy normally available as an option.
● Newly designed chassis includes a shaft-type 4WD with an established double wishbone suspension to deliver excellent driving performance.
●Fully equipped with (22) ball bearings as standard specification for superior drive effectiveness.
● Constructed With lightweight resin telescopic universal shafts on all four tires to cut back drive loss preventing drive shaft drop outs in contact.
●Kit includes newly created 2.8 ins tires and tires. Standard specification 1/10 scale 2.8 inches tires and wheels can also be setup
● a myriad of gear ratios is selected by changing the normal gears within the kit. And this also supports on-road driving
●Rear linked to the device has wheelie bar that prevents the automobile from flipping from sudden acceleration
● Motor battery, charger, and 4 x AA batteries for transmitter can be obtained independently.

As unique gift for 1st release, a 2.0mm Hex motorist with all the "KB10" custom logo, which is often ideal for upkeep, and a big cross wrench are included.

Aluminum primary framework combines aided by the superior pitch rigidity of straight resin frame to create a high-strength framework that delivers optimal security of high rigidity and suppleness.

According to 1980’s age van styling, this newly created human anatomy is made of durable polycarbonate and finished with paint scheme and decals used. A separately molded grille and light components enhance the realism with this “Ultra Scale Body”.

Includes newly developed TORX 10L brushless motor. With 38mm diameter and long 68mm specs, the engine creates 2850Kv (rotations per volt) and effectively converts energy from the 3S LiPo battery pack into speed and torque.

Loaded with BRAINZ 10+ waterproof ESC (rate controller) that boasts 80A capacity. Top mounted air conditioning fan manages heat generation to reduce power loss despite having extended operating times.

Features the KS5031-91MW servo with 9kg / cm of torque and all-metal gears, guarantees reliable steering control.

Features battery pack holder ideal for mounting 3S LiPo battery power. By offsetting the residual part mount regarding the battery, left-right fat stability are set on driver’s preference.Also appropriate for 2S LiPo battery pack.

Newly designed oil shocks on front side and back suspension system system deliver smooth surprise absorber function. Change suspension system settings by creating optional springs to support numerous running conditions and areas.

Features the 4-bevel differential gear through Inferno NEO ST 3.0 1/8 scale buggy. With more than enough capability to manage the high-power drive product, the look also enables effortless diff gear option to superior upkeep effectiveness.

Newly created slipper clutch efficiently protects the drive system from excessive energy loads. Aluminum footwear provides optimal slip traits and improved acceleration.

TECHNICAL INFORMATION

• Length 472mm
• Width 350mm
• Height 198mm
• Wheelbase 295mm
• Tread F/R 278mm
• Tires(F & R) 128 x 70mm
• Gear Ratio 15.22:1
• Weight 3,610g (approx.)
• Motor TORX10L Brushless Motor kv2850

KIT CONTENT

• Factory come up with framework detailed with control linkages
• Pre-cut and painted human anatomy complete with decals applied
• 2.4GHz Syncro KT-231P+ transmitter
• 1.5mm/2.0mm/2.5mm L shaped hex wrench
• Cross wrench
• 4/5/5.5/7/10mm built-in spanner

REQUIREMENT TO USE

• AA-size batteries x 4 for transmitter
• Battery for driving (2-3S LiPo battery *Installable battery pack size 143x47x30mm)
• Charger for LiPo battery
