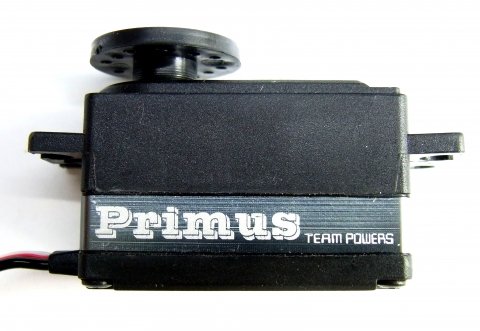

Team Powers Low Profile  [TP-DS0906L-V2]

Requirements:

Space Temperature Quantity: -20℃～60℃
Running Heat Number: 0℃～50℃
Running Voltage Number: 4.8V~6.0V
Gear Material: Titanium metal gear
Body weight: ~45g

Dimension: 40.6mm (L) x 25.3mm(W) x 20mm(H)
Stall Torque: 7.0 kg-cm @4.8V, 9.0kg-cm@6V
Working Speed(without any load): 0.07 sec/60°@4.8V, 0.06 sec/60°@6V
Dead musical organization width: ~4 μsec

Usage/Warning Notes:

-Vibration whenever operating may damage the servo. So that you can reduce steadily the vibration, it is
more straightforward to use the provided plastic grommet to install the servo to your technical dishes.
-Make sure to connect the servo lead connector towards the receiver correctly. Improper
connection will allow servo not function or it might probably burn off the circuit board within the
servo.
-Make certain the ability line is linked tightly to your receiver. Otherwise, the free
connection may result in the servo unmanageable.
-Do perhaps not turn the servo horn forcibly in the energy on status. Otherwise, it might probably harm
kit component in servo.
-Do not use within the rainfall or in a spot where in fact the water log in to it. The servo can be from
control regarding becomes wet.
