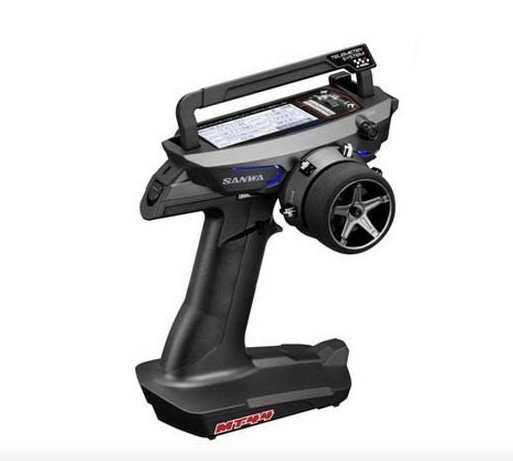

Sanwa MT-44 - 4-Channel 2.4G Transmitter With RX481 and RX482 Receiver  [SW-MT-44-812B]

Beyond Middle Class Radios, The MT-44 Transmitter

• HIGH RESOLUTION DISPLAY
  The identical step-by-step dot as M12S enables therefore clear display.
  Three as a type of telemetry data is exhibited simultaneously as a result of grey scale display.
• BEST PLACE FOR STEERING / THROTTLE
  Steering/Throttle is arranged to the most useful destination for operation.
  Drop Down is used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries allows become not only compact and light.
• USB CHARGE
  When used with optional Li-Po 1 mobile battery power, fat become lighter and it can be changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Safety Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Display
• CSV production for LOG data
• CODE 10-compatible (Naming support)
• Simultaneous three telemetry information display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB modification support)

• Large complete dot LCD monitor
• Wight LED back light
• Full adjustable trigger
• Telemetry function
• integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Dual Rate
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable speed Control)
• AUX1 (Movement kind for 3CH. it's exactly like MT-4S function.)
• AUX2 (motion kind for 4CH. it's just like MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever along with facts, 250 models can be had.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• reaction Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (1 - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite stage))
• MOA BLENDING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Compatible Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA brand new SSL SYSTEM

• Whenever utilized in combination with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the surroundings of ESC an such like. by Transmitter can be obtained through SSL functions while driving.
• Since the surroundings can be achieved without stop of automobile, the detailed adjustment in accordance with Race conditions
  is available without interruption of Intervals plus the modification of device conditions.


[Response of Telemetry System]

• It is said that telemetry system reduce effect speed. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed decrease.
  Our Exceptional Telemetry System doesn't have reaction speed decrease.
• With our telemetry system, the valuable battle information will help these competition environment and driving.


[Response Mode]

• Please do not use Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo will likely be broken and will maybe not work.
  Digital servo (SRG show, Digital ERG show, SDX show) can be used both for NOR mode and SHR mode.
• SSR mode can be used by simply SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR usually do not work.
  Please use NOR mode for the above ESC.
