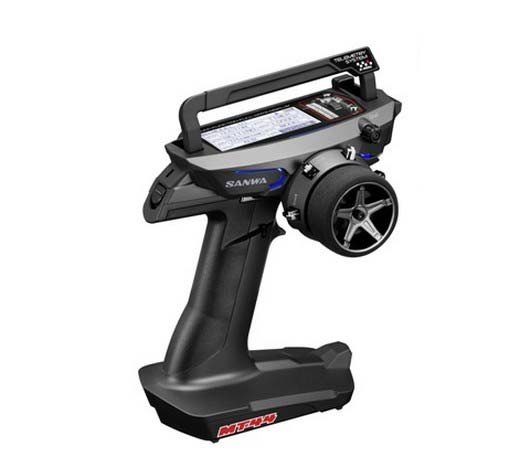

Sanwa MT-44 - 4-Channel 2.4G Transmitter with RX482 and RX472 Receiver  [SW-MT-44-78B]

Beyond Middle-income Group Radios, The MT-44 Transmitter

• TALL RES SHOW
  Similar detailed dot as M12S enables consequently clear display.
  Three type of telemetry information can be shown as well as a result of gray scale display.
• IDEAL PLACE FOR STEERING / THROTTLE
  Steering/Throttle is arranged into the most useful place for procedure.
  Drop Down is required as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries allows become not just compact and light.
• USB CHARGE
  Whenever combined with optional Li-Po 1 mobile battery, weight become lighter and it's also changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• fast Setup Wizard
• Protection Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry change
• Clock
• Circumstance Temperature Show
• CSV Output for LOG information
• RULE 10-compatible (Naming help)
• Simultaneous three telemetry data show
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB change help)

• Large complete dot LCD monitor
• Wight LED back light
• Complete adjustable trigger
• Telemetry function
• Integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Twin Rate
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Speed Control)
• AUX1 (movement kind for 3CH. it's just like MT-4S function.)
• AUX2 (motion type for 4CH. it's the same as MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever used in combination with sdcard, 250 models can be obtained.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• reaction Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (the first step - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite period))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• amount Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Suitable Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA brand new SSL SYSTEM

• Whenever used with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the surroundings of ESC and so on. by Transmitter can be had through SSL functions while driving.
• as the environment can be carried out without stop of automobile, the step-by-step modification according to Race conditions
  can be had without disruption of periods as well as the modification of machine conditions.


[Reaction of Telemetry System]

• it is said that telemetry system reduce reaction rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without effect speed decrease.
  Our exemplary Telemetry System doesn't have response speed decrease.
• With your telemetry system, the valuable battle information assists another battle setting and driving.


[Reaction Mode]

• Please don't utilize Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo will be broken and can maybe not work.
  Digital servo (SRG show, Digital ERG series, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode may be used only by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR tend not to work.
  Please use NOR mode the above ESC.
