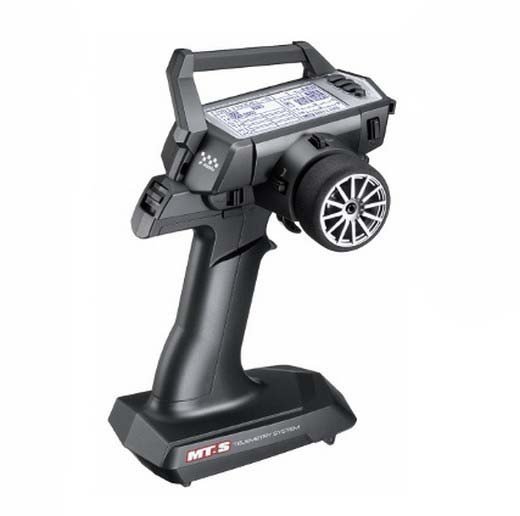

Sanwa MT-S - 4CH 2.4Ghz with RX-482 x 2, FH4/FH3 SSR SSL 4cell  [SW-MT-S]

QUALITIES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL TYPES) COULD POSSIBLY BE SET TRULY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable gear are set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDDIES
• MIDDLE CLASS (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE COST CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY PACK)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY ESTABLISHING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE METHOD TYPE OF 3CH)
• AUX2(SELECT THE PROCESS SORT OF 4CH)
• AUX TYPE SETTING
• CODE AUX (APPROPRIATE SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICING IS VARIABLE.
• AUX BLENDING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL DESCRIPTION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA new SSL SYSTEM

• whenever used with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC an such like. by Transmitter can be acquired through SSL functions while driving.
• Since the environment may be accomplished with no end of automobile, the step-by-step modification before Race conditions can be obtained without disruption of periods which means modification of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• it is stated that telemetry system reduce effect speed. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our Excellent Telemetry System has no reaction speed reduction.
• With this telemetry system, the valuable competition information can help these competition establishing and driving.

[RESPONSE MODE]

• don’t utilize Analog Servo for SHR mode or SSR mode.
• If analog servo is employed for SHR mode or SSR mode, the servo is likely to be broken and can perhaps not work.
• Digital servo (SRG show, Digital ERG series, SDX show) can be used both for NOR mode and SHR mode.
• SSR mode can be used just by SRG series servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR never work.
• Please usage NOR mode the above mentioned ESC. SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
