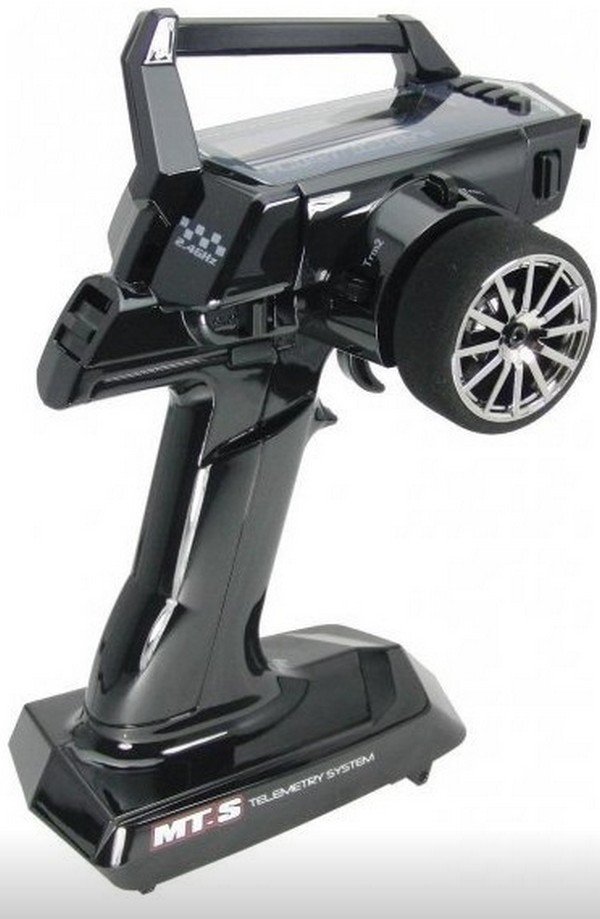

Sanwa MT-S Piano Black Limited Edition With Receiver RX-482 and RX-481WP  [SW-MTS-4821BK]

QUALITIES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL TYPES) IS SCHEDULED DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable gear could possibly be set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR CHILDREN
• MIDDLE-INCOME GROUP (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE PROCESS SORT OF 3CH)
• AUX2(SELECT THE TASK SELECTION OF 4CH)
• AUX TYPE ESTABLISHING
• CODE AUX (BEFITTING SUPER VORTEX ZERO & TYPE-D MENU)
• ACTION AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICE IS VARIABLE.
• AUX BLENDING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA amazing SSL SYSTEM

• whenever used with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC and so on. by Transmitter can be had through SSL functions while driving.
• due to the fact the environmental surroundings may be accomplished with no stop of vehicle, the step-by-step modification in accordance with Race conditions can be obtained without disruption of periods plus the modification of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often stated that telemetry system reduce reaction rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our exceptional Telemetry System doesn't have response speed decrease.
• with this particular telemetry system, the valuable battle information may help another race setting and driving.

[RESPONSE MODE]

• Please don't use Analog Servo for SHR mode or SSR mode.
• If analog servo is employed for SHR mode or SSR mode, the servo are broken and will maybe not work.
• Digital servo (SRG series, Digital ERG series, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode can be used simply by SRG show servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR will not work.
• Please utilize NOR mode for the above ESC. SV-08, HV-10, HV-12, F2500 can perhaps work by NOR/SHR MODE.

RX-482

• 2.4GHz FHSS4 Spread range system 4ch
• SSL assistance (ESC: Super Vortex Series etc.)
• incorporated Antenna
• Sanwa Super Response (SSR) support
• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 3.7V~7.4V
• Proportions: 18.2x24.4x27.1mm
• Body fat: 7.1g
• Appropriate radio :M12, Exzes Z, MT-4S, MT-4(No SSL help)
