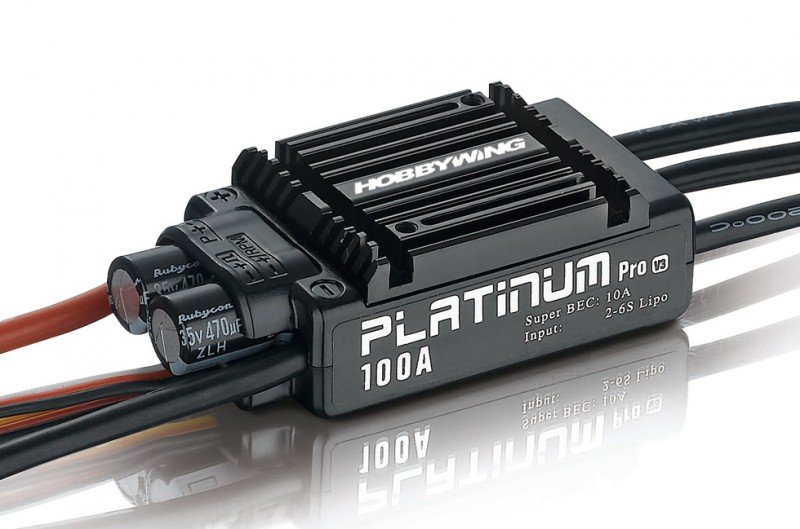

HOBBYWING Platinum 100A V3 - 30203900  [HW-30203900]

New Design & Excellent Performance

New structure design combined with high-performance micro-processor
guarantees users efficient temperature dissipation, good compatibility (with various engines),
high driving efficiency, and and so on.

Great energy Output

This Platinum 100A V3 ESC featuring a continuous current of 100A
and top up-to-date of up to 150A guarantees users high and stable manufacturing
on a regular basis during each trip.

High Voltage Built-in BEC

The incorporated switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, an ongoing present of over 10A and top present of 25A
can provide enough energy for the servos to use efficiently.

Effective Heat-dissipating System

Besides the heatsink on Platinum 100A V3, an extra cooling
fan is roofed in item industry to increase cooling performance (customers can set it up
onto ESC heatsink if necessary).

Four Flight Modes & “Auto Restart” Function

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (shop Governor)” four
trip modes and “Auto Restart (Time)” function guarantees users excellent
speed-governing performance in Heli Governor mode and allows users to cutoff manufacturing and restart
motor for avoiding possible crash caused by bad procedure.

Several Protections

Multiple security features contain irregular input voltage,
ESC thermal, throttle sign loss (or Fail secure), and low voltage cutoff
effectively prolongs the service life of this ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC production : change Mode:6V/7.4V/8.4V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : specific system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x35.0x21.0mm
• Weight : 104g
