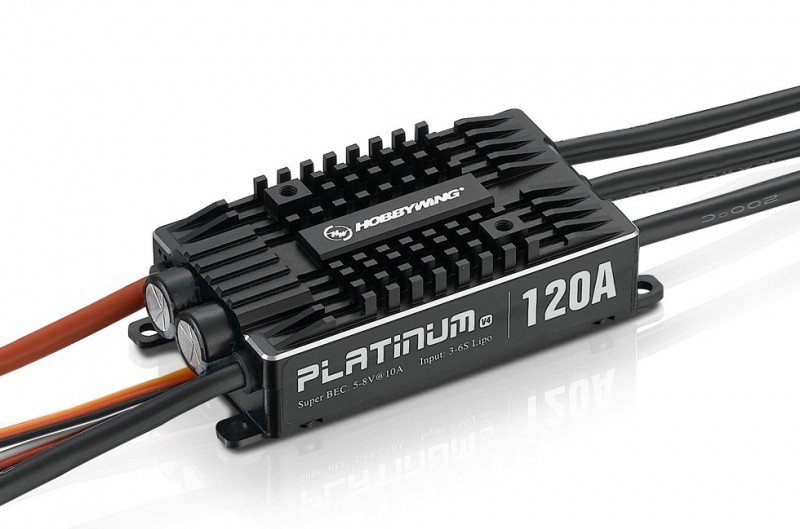

HOBBYWING Platinum 120A V4 - 30203401  [HW-30203401]

Super smooth Start-up

Platinum V4 serial products allows the engine to start exceptionally smooth
and avoids tail-drift issues that helicopters experience. The start-up time
is adjustable from 8 to 25 moments, this might clearly produce an incredible
starting place for every flight.

Exemplary engine Speed Governing

High-performance 32-bit processor with a prossesing regularity of 72MHz in conjunction with
higher level algorithm optimizes the rate governing. With the adjustable governor
parameters it'll guarantee every pilot an exact and efficient control experience.

Other Features

A split system slot to get in touch programmer with this ESC allows individual to
● Program ESC,
● check always trip information consist of minimal voltage, maximum temperature, standardized RPM and
speed fold (in Heli Governing store mode) connected with journey parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD system field or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The stopping system quantity is adjustable in
normal braking system mode; in proportional braking system mode, the braking system force will likely be
automatically opted for based on the place of radio throttle stick; in reverse
stopping system mode, the motor rotation could be changed via a supplementary transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 120A/150A
• Input Voltage : 3-6S LiPo
• BEC Output : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : not Supported
• LED Program Card : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 84.3x38.2x20.4mm
• Weight : 107g
