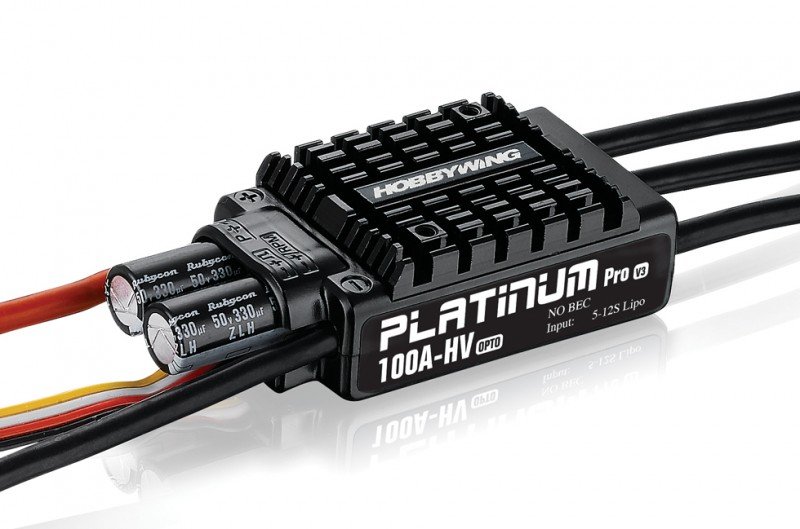

HOBBYWING Platinum HV 100A OPTO V3 - 30203600  [HW-30203600]

Great energy Output

This Platinum HV 100A OPTO V3 ESC can output a consistent current
of 100A and top present all the way to 140A.

New Design & exceptional Performance

New framework design coupled with superior micro-processor guarantees
users efficient temperature dissipation, good compatibility (with various machines),
high driving effectiveness, and an such like.

High-voltage Battery Packs Supported

This HV 100A OPTO V3 ESC is supposed the procedure of 6-12S LiPo battery pack packages.

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (store Governor)” four journey modes and “Auto
Restart (Time)” function guarantees users exemplary speed-governing
performance in Heli Governor mode and permits users to cutoff output and restart
motor for avoiding feasible crash triggered
by bad procedure.

A few Protections

Multiple safety features consist of unusual input voltage, ESC thermal,
throttle signal loss (or Fail secure), and low voltage cutoff efficiently prolongs the answer
life about the ESC.

Other Features

A split system port to get in touch programmer on this ESC permits individual to
● program ESC;
● update ESC firmware (multifunction LCD system package is needed);
● monitor/record journey data immediately (with an information transmission module);
● power the excess cooling fan (an integral part of item package).

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 100A/140A
• Input : 5-12S LiPo
• BEC manufacturing : No

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 77.0x35.0x21.0mm
• Weight : 104g
