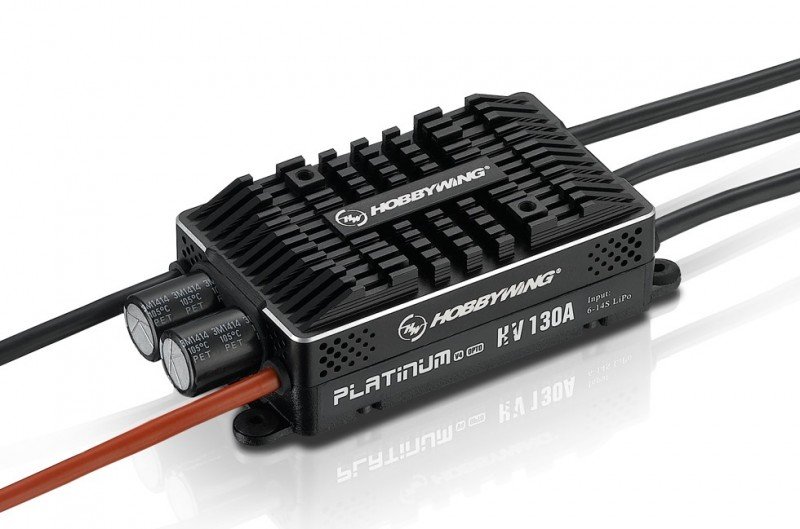

HOBBYWING Platinum HV 130A OPTO V4 - 30209201  [HW-30209201]

Super Soft Start-up

Platinum V4 serial items permits the engine to begin with extremely smooth and avoids tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this can truly produce a fantastic kick off point for each trip.

Excellent Motor Speed Governing

High-performance 32-bit processor with an operating regularity of 72MHz along side
advanced level algorithm optimizes the speed governing. Alongside the adjustable
governor parameters guarantee every pilot an accurate control experience.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four braking system modes. The brake quantity is adjustable in normal
braking system mode; in proportional braking system mode, the braking system force would be instantly
allotted good place of radio throttle stick; backwards brake mode, the
engine rotation may be changed via a spare transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : No

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 154g

Applications
