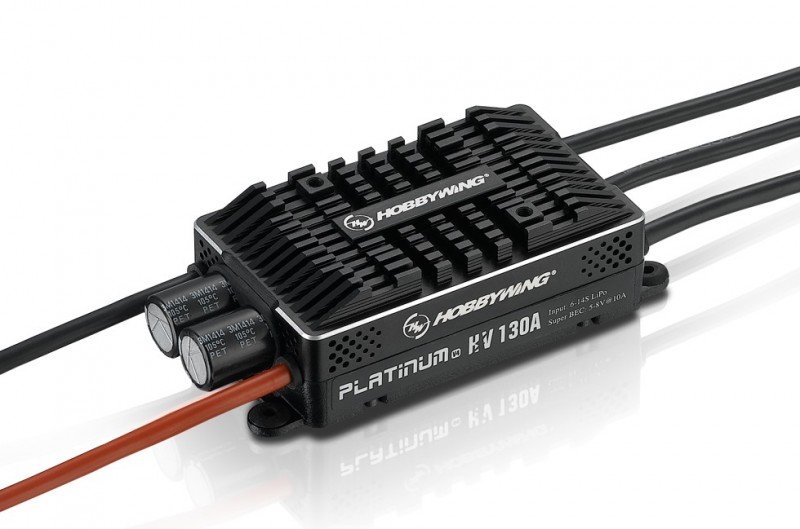

HOBBYWING Platinum HV 130A V4 - 30209200  [HW-30209200]

Super Soft Start-up

Platinum V4 serial products enables the engine to start acutely smooth and avoids tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this will certainly create an incredible starting point for each journey.

Exceptional engine Speed Governing

High-performance 32-bit processor with a running frequency of 72MHz in conjunction with
advanced algorithm optimizes the price governing. Alongside the adjustable
governor parameters guarantee every pilot an exact control experience.

Tall Voltage integrated BEC

The integrated switch mode BEC with an adjustable voltage include 5V to 8V, a continuing up-to-date of
over 10A and top present of 25A can offer sufficient power for the servos to operate efficiently.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The brake volume is adjustable in normal
brake mode; in proportional brake mode, the braking system force is going to be instantly
allotted good position of radio throttle stick; backwards stopping system mode, the
motor rotation could be changed via an extra transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC production : change Mode:5-8V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : maybe not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 169g
