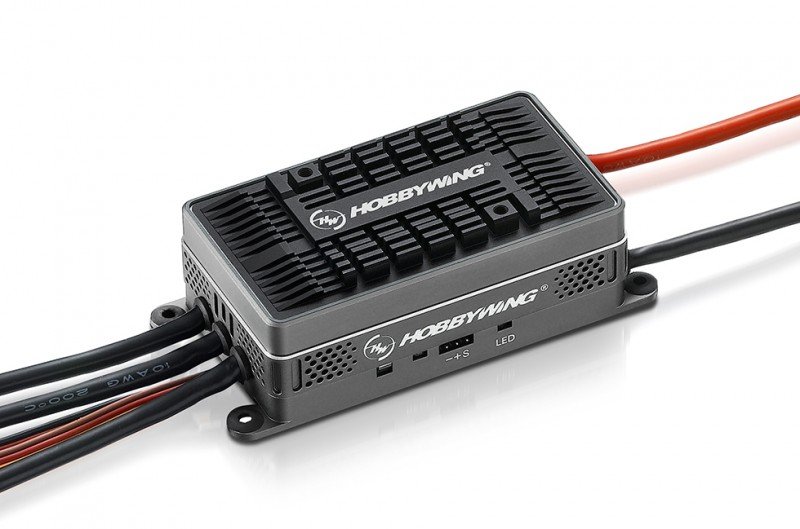

HOBBYWING Platinum HV 160A V4 - 30203700  [HW-30203700]

Original Design

The elegant circumstances are manufactured by Aluminum. Each cooling slot and its fin was indeed cautiously developed
and arranged, additionally the instance experienced oxidation, coloring and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The innovative "duo" stacking framework
enables all elements on both sides of
imprinted circuit panels to quickly conduct
temperature towards the aluminum instance.

Excellent motor Speed
Governing

High-performance 32-bit processor combined
with high rate algorithm makes the engine
speed-governing exceptional for different
conditions. With all the adjustable sensitiveness of
speed-governing, every pilot can find numerous
suitable settings with regards to their helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC production : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x34.0mm
• Weight : 282g
