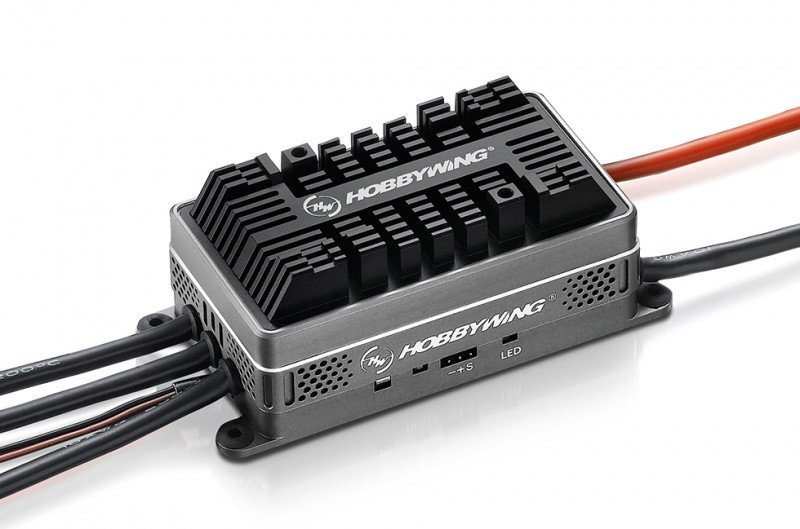

HOBBYWING Platinum HV 200A OPTO V4 - 30209100  [HW-30209100]

Original Design

The elegant situations are created by Aluminum. Each cooling slot and its fin have been meticulously created
and arranged, and the instance went through oxidation, color and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The revolutionary "duo" stacking structure
allows all elements on both edges the
printed circuit panels to quickly conduct
heat towards aluminum situation.

Exemplary engine Speed Governing

High-performance 32-bit processor coupled with
high rate algorithm makes the engine
speed-governing exceptional for various conditions.
Using the adjustable sensitiveness of speed-governing,
every pilot can get your best option settings for
his helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Current : 200A/250A
• Input : 6-14S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x40.0mm
• Weight : 305g
