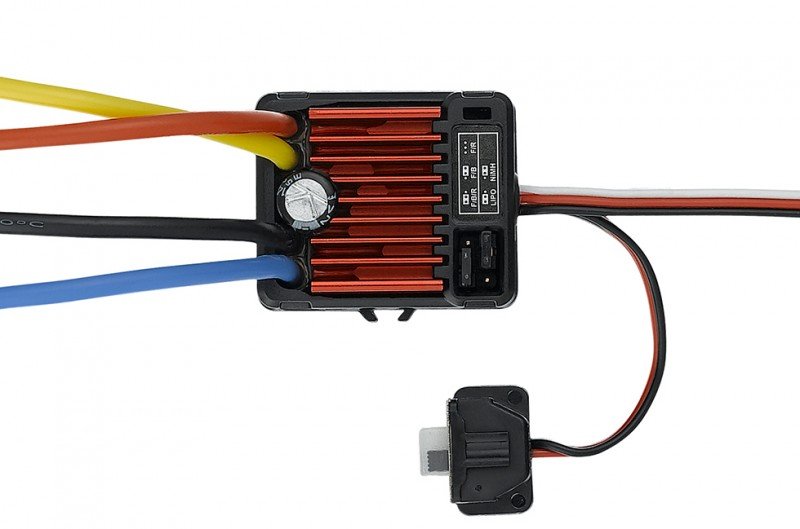

HOBBYWING QuicRun WP 1060 Brushed - 30120201  [HW-30120201]

Simple Operation

This ESC is particularly created for completely new novices and intermediate modelers;
it not only carries ahead the outstanding quality of HOBBYWING products but
simplifies the process.

Tall Reliability & Durability

Reliable equipment coupled with high level software technology enables the
QUICRUN WP 1060 Brushed not to simply provide high energy production but
also overload protection for the ESC circuit.

Simple to Use

This ESC features car throttle calibration and parameter setting via jump caps is easy-to-use,
particularly relevant to fresh novices.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : change Mode:6V/3A

Wires & Connectors

• Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output cables : B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1
• Input Connectors : Big-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : No
• Voltage number : No
• Powered by : No

ESC Programing via

• SET Button on ESC : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : perhaps not Supported
• Program Port : Jumper Cap

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 36.5x32.0x18.0mm
• Weight : 39g

Applications

• Motors : Brushed Motors
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  (540/550 Size engines)
