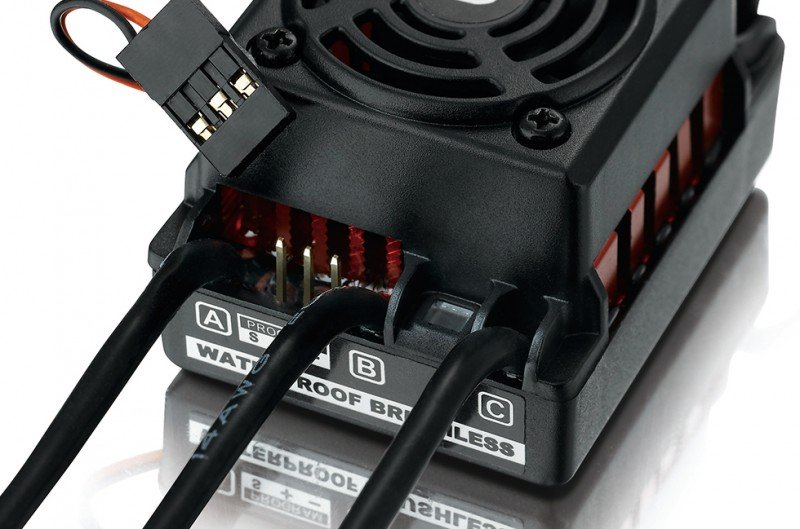

HOBBYWING QuicRun WP 10BL60 - 30107100  [HW-30107100]

Effortless Operation

This ESC is very made for brand new novices and intermediate modelers;
it not merely carries forward the outstanding quality of HOBBYWING items
but simplifies the task.

Applicable to any or all Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-10BL60
to be found in every climate conditions without any problem of damage
triggered towards the ESC from water or dirt.

Tall Reliability & Durability

Reliable equipment combined with advanced software technology
enables the QUICRUN 10BL60 never to simply provide high energy production but
in addition overload security for the ESC circuit.

Built-in BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V make this ESC suitable for different servos.

Single-button Programming & Factory Reset

The SET key regarding ESC allows a person to easily plan or factory reset the ESC with ease.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : Switch Mode:6V/3A

Wires & Connectors

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output cables : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connector (Female)

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 48.5x38.0x32.0mm
• Weight : 90g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Monster Trucks
