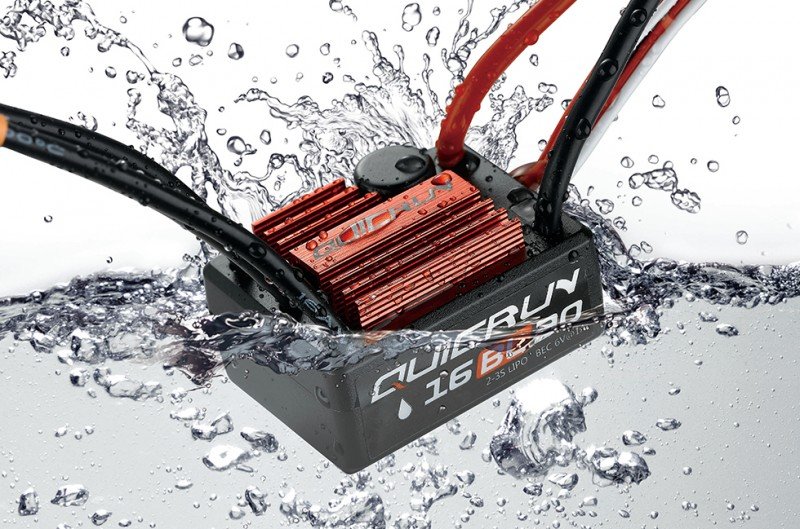

HOBBYWING QuicRun WP 16BL30 - 30110000  [HW-30110000]

Item Specification

Type

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 30A/180A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : Linear Mode:6V/1A

Wires & Connectors

• Input cables : Red-16AWG-75mm*1/Black-16AWG-75mm*1
• Output cables : Black-16AWG-75mm*3
• Input Connectors : Small-sized TAMIYA Connector
• Output Connecotors : 3.5 silver Connector (Female)

Fan

• Size : No
• Voltage number : No
• Powered by : No

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 36.0x28.0x16.0mm
• Weight : 38g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/16^th, 1/18^th Touring Cars/Buggies/Trucks/Monster Trucks
