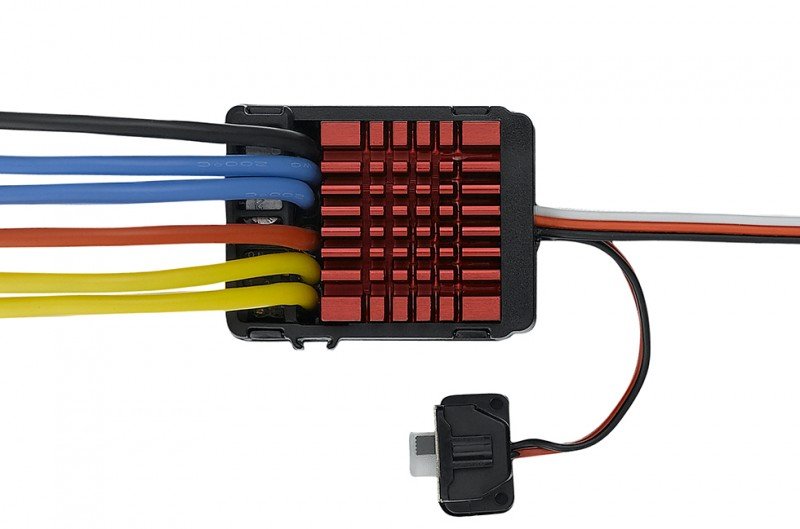

HOBBYWING QuicRun WP 860 Dual Brushed - 30105400  [HW-30105400]

Effortless Operation

This ESC is very created for brand new novices and intermediate modelers;
it not merely holds forward the outstanding quality of HOBBYWING items
but simplifies the procedure.

Applicable to all or any or any Weather Conditions

The waterproof and dust-proof design enables the QUICRUN WP-860-Dual-Brushed
to be utilized in most weather conditions minus the issue of damage triggered
to the ESC from water or dirt.

Built-in BEC

The integrated switch mode BEC with a maximum production of 6Amp and voltage of 5V
get this to ESC compatible with different servos.

An easy task to Use

This ESC features vehicle throttle calibration and parameter environment
via jump caps is easy-to-use, particularly relevant to brand new novices.

Dual Output

This ESC can drive two brushed engines at the same time.
It’s cost-effective and relevant to low-speed crawlers and tanks which operate two machines

Product Specification

Type

• Scale : 1/8^th、1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Current : 60A/360A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC production : change Mode:5V/3A

Wires & Connectors

• Input cables : Red-16AWG-150mm*2/Black-16AWG-150mm*1
• Output cables : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Not Supported
• WiFi Module : maybe not Supported
• Program Port : Dip Switch

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 46.0x36.0x26.3mm
• Weight : 73g

Applications

• Motors : Brushed Motors
• Vehicles : 1/8^th, 1/10^th Touring Cars/Buggies/Trucks//Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  4S LiPo: T≥24T
  (540/550/775 Size Motors)
