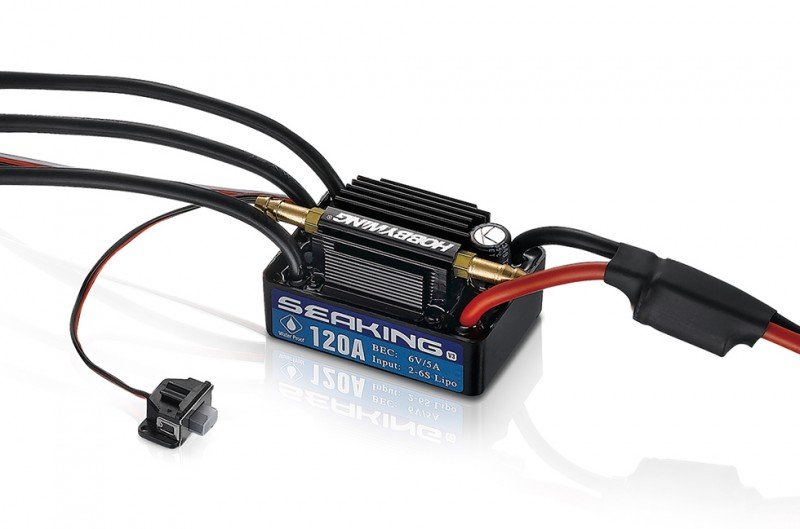

HOBBYWING Seaking 120A V3 - 30302360  [HW-30302360]

Performance & Reliability

Built with top-notch components and along with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
numerous safety adjustable options are in use,
utilizing the utilization of the low-voltage cutoff protection,
thermal security and throttle sign loss security.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target on power board of
the Seaking 60A V3.1 can effectively and effectively transfer heat on built-in CNC machined
billet aluminum water cooled heat sink housing for that reason maintaining
your ESC as cool possible.

Waterproof Design

100percent waterproof without extra security.

Built-in BEC

The integral switch mode BEC with a maximum production of 6Amp and
voltage of 6V fully grasp this ESC appropriate for high voltage servo.

Unique Algorithm Design

The unique algorithm implemented within the ESC result in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot regarding ESC can link ESC to a course
industry (via the trio-color development cable) and initiate ESC programming.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 120A/720A
• BEC production : change Mode:6V/5A

Wires & Connectors

• Output Wires : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : specific Program Port

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 68.5x39.4x32mm
• I.D./O.D. linked to the liquid Cooling Pipe : Ф3.0/5.4 mm
• Weight : 150g

Applications

• Boat Length <110cm
