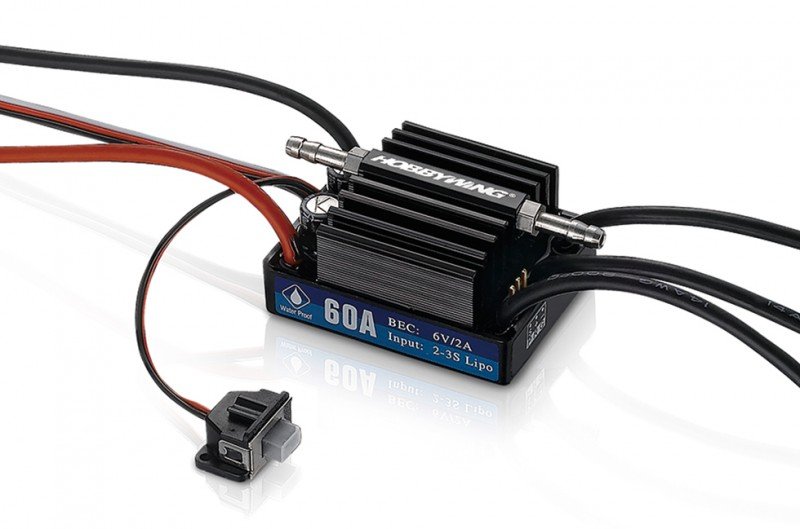

HOBBYWING Seaking 60A V3.1 - 30302200  [HW-30302200]

Performance & Reliability

Built with top-notch elements and in conjunction with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
many protection adjustable choices are offered in usage,
along with the utilization of the low-voltage cutoff protection,
thermal security and throttle indication loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper club address on the energy board of
the Seaking 60A V3.1 can efficiently and effortlessly move heat to the integral CNC machined
billet aluminum water cooled heat sink housing thus keeping
your ESC as cool as you possibly can.

Waterproof Design

100percent waterproof with no need of extra protection.

Built-in BEC

The integrated switch mode BEC with a maximum production of 6Amp and
voltage of 6V understand this to ESC suitable for high voltage servo.

Unique Algorithm Design

The unique algorithm implemented inside ESC cause the acceleration
more amazing and cruising more stable.

Separate PRG/FAN Port

The split PRG/FAN port regarding ESC can link ESC to an application
package (via the trio-color programming cable) and commence ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Current : 60A/360A
• BEC production : change Mode:6V/3A

Wires & Connectors

• Output cables : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 60.5x38.5x25.6mm
• I.D./O.D. of liquid Cooling Pipe : Ф2.0/4.0 mm
• Weight : 95g

Applications

• Boat Length <70cm
