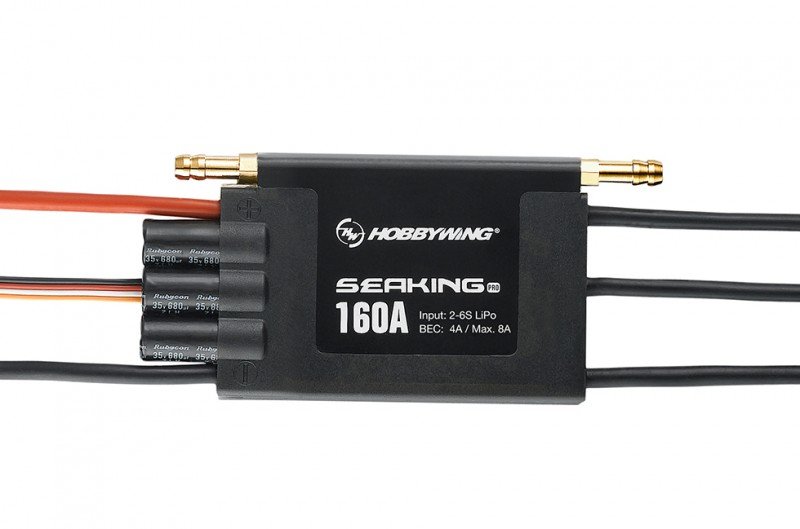

HOBBYWING Seaking PRO 160A - 30302460  [HW-30302460]

Competition Design

The light-weight regarding the professional 160A was created to meet up with the users requirement
of a light-weight item for several marine competition which fat is an issue
of rate and endurance. The core system for top-level competition
services and products guarantees a person first-class control and “abundant”
programmable parameter things for various competition surroundings.

High Voltage integrated BEC

The integral switch mode BEC with a maximum production of 8Amp and switchable
voltage of 6V/7.4v get this ESC suitable for high voltage servo.

Firmware Upgradeable

TThe Hobbywing patented heat-conductive copper club address in the energy board of
the ESC using the water cooling module effectively and effortlessly
transfers temperature toward exterior hence keeping your ESC as cool as you are able to.

Item Specification

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Current : 160A/1050A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC production : change Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 108.5x51.5x14.4mm
• I.D./O.D. about the Water Cooling Pipe : Ф3.0/5.5 mm
• Weight : 127g

Applications

• Mono2 /Other Competition ships (≤120cm)
