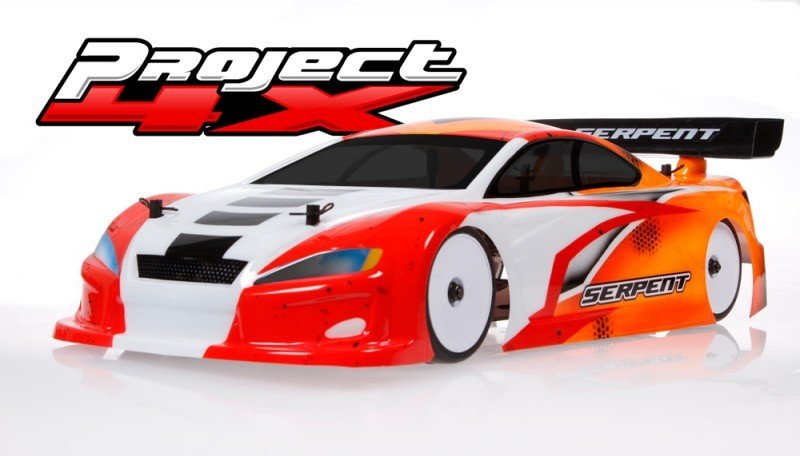

Venture 4X Touringcar EP 1/10 Serpents Venture 4X brand-new, revolutionary and revolutionary 1/10 Touringcar The venture 4X touringcar has a unique new and proven design, in which suspensions works in an extremely effective various technique, with a remarkably low center of gravity, very easy to have outcomes on and very durable. A facile task to push and lightning fast ! 2016-2017 IFMAR World Championship third destination 2016 EFRA EC A-main finalist 2016 several ETS A-main finalist
Specs:
- Vehicle: Venture 4X #400030
- Class: 1/10th scale 190mm Electric
- Purpose: 190mm Competition touring automobile
- Chassis: 2mm carbon, CNC machined
- Suspension system: Separated heave and move system
- Back axle: back gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: 2 heave dampers and 2 roll dampers
- Wheel base: 254mm +/- 4mm
- Track-width front part: 190mm + /- 6mm
- Track-width back: 190mm + /- 6mm
- Weight (framework): 550 grms
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll centers
- not Included: engine, battery pack, rate Controller, tires, human body, radio equipment.
Features:
- Split roll and heave motion into the car in order to make set-up easier and even more exact
- Roll and heave dampers are little, they might require just lower amounts of oil
- Dampers consist of machined pistons for best possible perseverance
- All dampers are through rod piston systems so no membrane layer required
- Good selection of heave and roll springs
- Anti-roll club function incorporated in roll damper/springs
- Simple and fast to alter / supercede your entire damper devices
- Front and tail are particularly nearly identical, so less free elements required
- Pivotball suspension for ease and free motion
- The Pivotballs are plenty smaller in diameter when compared with previous touringcars
- Easy diff and spool reduction
- exceedingly low center of gravity
- Reversed steering system for better Ackermann geometry
- No top deck required (topdeck can be had as optional for tough sporting circumstances)
- Center stiffener made of 7075 T6 aluminium for rigidness and anti-tweak, connecting leading and tail
- One piece motorholder that also links toward center stiffener and also the back RRS system
- Re-Active backside steering RRS system is standard
- Ballraced mid-shaft holders allow effortless upkeep and changing of spurgears
- Pullrod activated system with rockers to stimulate the dampers
- same heave damper front part and back that can easily be installed below the diff/spool right above the chassis for cheapest feasible center of gravity
- brand new differential utilizing new gears also for smoother functioning
- Battery mounting system allows reposition the battery power more front or back
- in the event of shorty Lipos are used, the Lipo might be possitioned in 3 designs
- One screw ride-height modification from framework part
- Lightweight front side aluminium spool with hardened metal outdrives to make use of blades
- Carbon fibre framework in 2mm as standard
- DJC system in the front side made from spring-steel countertop wheelchatter and straight back regular cvds crafted from 7075 T6 aluminium save fat
- One quick and something longer kevlar reinforced drivebelt and supertune working pulleys, midshaft pulleys created from difficult anodized aluminium for maximum durability
Ball-bearings
Good quality, high precision lubricated longlife NSK bearings made of hardened metal throughout.
Fasteners
Quality metal fasteners for durability. Minimised number of various screws for effortless arranged and maintenance
Framework
Carbon fibre framework in 2.0mm thickness. Countersunk holes and built to have equal flex left to right.
The screws to set trip height are modified from base connected with framework with only a unitary screw ahead and another into the back with an easy and effective procedure to regulate the rideheight.
Battery mounts
current battery mounts stated in aluminum and carbon dietary fiber and invite to position the battery more tot he forward or right back and secure it well setup. Shorty lipos are placed centered, inside front or rearward destination.
Floating servo mount
The servomount is a variety of a carbon brace and aluminum articles. The carbon brace is bolted towards main brace and can perhaps not touch the framework to get rid of any flex influence.
Steering system
The ballraced aluminium steering system consist of an inversed leversystem to better control the Ackermann setting. The angle distinction between the inside and outside wheel will undoubtedly be far more linear compared to traditional designs.
Drivetrain
In front the 4X features durable springtime metal double joint cardan shafts, combined with blade sort spool.
Into the straight back lightweight coated aluminium cvd style dogbones are utilized with durable springtime steel wheelaxles.
Both front part and right back wheelhexes are a lightweight aluminium design
Steeringblocks / uprights
inside front part and rear the exact same steeringblocks/uprights have been around in use. The pivotball system enables simple and easy quick set-up improvements and works really effortlessly. Inside front there is 3 Ackermann roles and shimming below the steeringrod can be utilized for fine tuning of bumpsteer traits. In back the system enables establishing Reactive rear Steering. This RRS system enables a modification of toe-in because the suspension system compresses and so increases cornerspeed.
Wishbones / pullrods / rockers
The lower wishbones are exactly the same front side and backside as well as the exact same relates to the top of hands.
The reduced arm mounts of 2 short pivot pins as well as the mounts have some room to flake out and play with wheelbase by using videos. The paid off arms additionally function 2 downstop screws front and back.
The surface of the wishbones help fast caster modifications with videos and run using an easily removable long pivot pin.
Rocker and pullrods system
The pullrods connect with the top of hands and operate the ballraced aluminium rockersystem which activates the dampening systems for heave and roll action. All trackrods and pullrods were created in coated lightweight and tough 7075 T6 aluminum.
Aluminium top hinge pin holders and alu stiffeners
The arranged is split in 2 sections to permit for simple upkeep and change of settings. The inner top brace connects both edges and produces an extremely strong framework preventing tweak. The topbrace is linked to the low brackets with alu stiffeners. These stiffeners may be simply removed whenever more flex will become necessary.
The arranged remainder on roll center spacers. To include extra shims for changed cambergain and rollcenter is a simple and quick environment.
Bumpers and bodymounts
in the front side a powerful bumper-set using a considerable size but light foam bumper which can be sandwiched between your lower composite bumper and upper graphite owner. The flexible moulded bodyposts with swivel-system undergo. Optional body height systems can be found.
within the straight back the paid down bumper will avoid harm to the rear of 4X therefore the moulded bodyposts with swivel system mount on a dense and rigid carbon dish, that is the main strong end installation.
Suspension System
Inside 4X automobile the heave and roll linked to the car run and so are set individually. The key and end for the vehicle are very almost identical in design and share many of the identical parts front part and back, and that means you need less different spares.
Heave damper
There is one have actually damper right in front plus one in back addition they work with the exact same way. The heave damper is found just over the framework to cut back the guts of gravity. Pullrods which are attached to the top of arms url to the rocker system. The rocker system is linked through a swivel product to your heave damper and roll damper product. The small heave damper has a tiny strong shockabsorber springtime and it is oil filled. Different sebum and springs can be employed for setup work, affecting mainly bump and on-throttle/off-throttle transitions. Its an easy task to access from the bottom regarding the framework.
The trip height is planned with a straightforward one screw environment in framework, both front and straight back.
Roll damper
The roll damper device include an oil human body for dampening with a thru shaft and has now a tiny springtime for each side. This product controls the roll the framework, it works as an anti-roll bar.
Different oils and springs can be used for setup work. The entire device comes out after releasing just 2 screws. One could have complete rolldamper assemblies willing to change settings in moments.
Chassis stiffner
The 7075 T6 primary alu brace manages the bond between front side and buttocks and prevents undesired tweak and manages torsional anxiety. For most circumstances it eliminates the necessity of a topdeck.
Motor mount
Acutely low 7075 T6 aluminium motormount which doubles up as connector for the midshaft holders, connection the RRS system, owner the alu stiffener and connector toward central brace, all-in one.
Gear differential
The nicely shaped renewed gear differential features brand new inside gears which helps it is supersmooth. The compact and light product holds enough oil to present stable performance through the entire run. It's without headaches to you need to down and re-mount the differential.
Front spool
The coated aluminium front side spool with lightened springsteel outdrives is a blade type which guarantees superb handling and durability throughout the battle, and it's also easy to change blades as required. It really is fast and easy to have and re-mount the spool. The springsteel is strong sufficient that you can effortlessly finish your run despite a broken blade without damaging the outdrives in excess.
