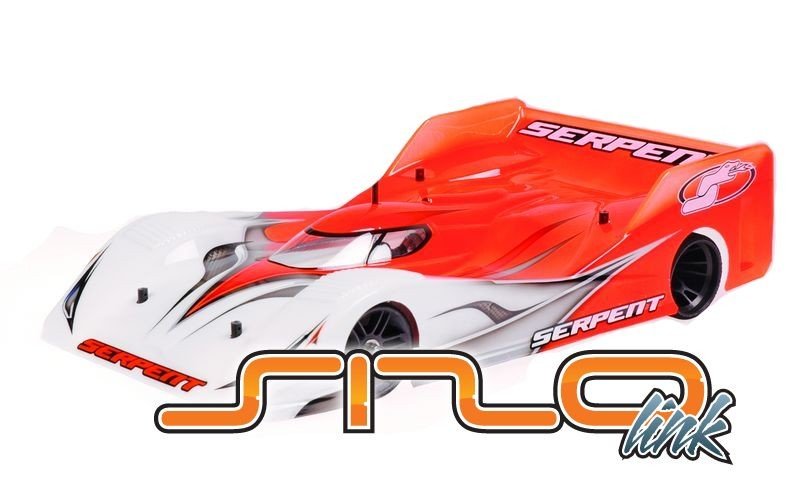

Serpent 1/12 scale pancar S120 Link. Link type of the effective S120 1/12 scale pan-car (SP-400001). Powerful 1/12 scale pan chassis, with well machined carbon fiber and aluminium elements.
Specifications:
- course: 1/12th scale
- Function: Competition pan vehicle
- Chassis: 2.5mm carbon fibre, 4-cell, CNC machined
- right back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled shock absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front side: 163mm +/- 3mm
- Track-width rear: 170.6mm
Features:
Front end
leading end of the automobile features 11 different alterations to acquire many from your car, that are quite simple to adjust and determine. Fixed lower suspension system system arms are on unique damped by the key strut which utilizes synthetic o-rings to occupy the flex in this region, as the grey anodised aluminium front top wishbone mounts are located in various caster perspectives, the vehicle being provided 6 degree variants as standard. Because of the steering block master pins spring loaded, the cornering forces are channelled through the top wishbone, that assist the vehicle to part at high rates.
Monoshock
Another unique function of S120 Link is its laterally mounted drifting monoshock which dampens the flex between chassis as well as the motor pod. Mounted utilizing ball bones through the top of back engine pod, both ends of surprise shaft are connected to the the top of straight back carbon body mount dish regarding the chassis, and because of its design even the tiniest of motions in the middle of your front side and back concerning the automobile is effortlessly absorbed. This method plays a big component in how the car becomes a large part and this can be modified by using different oils and surprise pistons.
core area
The springloaded side-bars, inbound links, are made from composite nylon and control the roll for the framework, alongside the lateral damper additionally the main main surprise. Precision made springs and pivot balls.
the key part is a mixture of elements to handle the motions of this tail completely
- a central main surprise, good famous Serpent RCC technology; the shocktower enables different perspectives.
- the set down mono-shock, identical to found in the S120T before, with through type shock-rod, and exemplary dampening charateristics
- 2 spring packed shaped part pubs
These elements communicate generate perfect handling (roll, bump and positioning) under all grip-conditions.
Body post
For securely mounting your body shell towards S120 Link, the automobile has strong synthetic body posts front and rear. All 4 posts are provided with orange anodised adjustable collars to properly adjust your body's height and also the articles are provided extra extended enabling the consumer to cut them with their particular favored size. Leading human body articles are also created to help protect the best associated with carbon framework from splitting in case there is much front impact.
Battery mounts
On S120 Link, the cells may be mounted in 2 various positions by changing the composite battery pack insert mounting destination. Attaching it towards front side or backside with this slot means the cells can go by 4mm, perfect for adjusting the automobiles fat distribution.The S120 Link also incorporates 4 pcs of Lipo inserts stated in nylon, which are generally glued toward Lipo pack and fit the battery-slots completely and so have them put up.
Servo saver
The S120 Link comes given a superior quality miniature servo saver, which by making use of orange anodised shims, has adjustable Ackerman. The kit contains 3 alu servo articles to select from, which allow entirely concentrated mounting of any popular brand name servo.
straight back axle mounts
The lightweight graphite backside axle is mounted on bearings that sit within eccentric composite inserts which allows the consumer to power to effortlessly and quickly affect the trunk trip height of the vehicle by changing between inserts. The kit comes provided with all 9 inserts which range between 0 and 4mm, each differing by 0.5mm and all are reversible for a straight wider selection of modification.
back ball differential
The S120 Link comes supplied with a durable and high end ball differential. Easily modified by a plastic nut, available through right backside wheel, the diff utilizes quality metal balls and meals and it is provided both suitable silicone and graphite grease for use during construction and upkeep.The re-designed straight back diff features enhanced hardened D-plates and carbon shaft construction for super smooth diff action.
Central shock absorber
to assist back traction under acceleration and also to take in bumps, the S120 Link recreations a centrally installed surprise absorber. Given a soft springtime, the pre load which can be modified, leading mount with this shock absorber is utilized for adjusting a large part down stop and range of flexibility relating to the framework and motor pod.The main surprise is installed on a shock-tower with many functions available.
back motor pod, chassis
The strong foundation is created by the 2.5mm thick carbon fibre framework meal with pockets allowing 4-cell packages or 1S Lipo pack, with helps allowing an ahead or backward battery pack place, and enough room for all you valuable gadgets.
The newly produced motorpod is a beautifull mixture of quality machined alu brackets and exemplary carbon fibre components, bolted together to come up with an ultra rigid back pod. The newest motor-bracket permits the brushless motor become set up inside optimal place for vehicle stability while offering good heat dissipation and .
