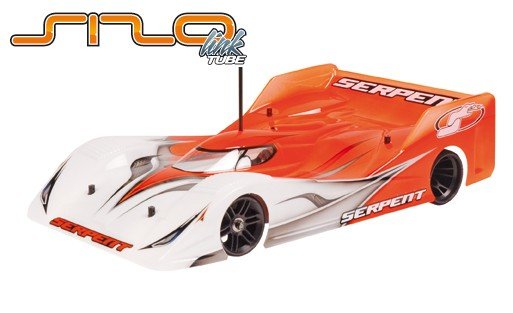

Serpent 1/12 scale pancar S120 Link-Tube version High performance 1/12 scale pan framework, with nicely machined carbon fibre and aluminium components. Superb fully adjustable front end creates lots of steering. Spring loaded Link system, in combination with diagonal positioned main shock and tube-system, controls the roll of this vehicle. Sensible Lipo chassis provides big selection of set-up features and options to dial the automobile in perfect for any track.
Requirements:
- Class: 1/12th scale
- Purpose: Competition pan vehicle
- Chassis: 2.5mm carbon fiber, Lipo
- right back axle: Aluminium shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled shock absorber and pipes
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front side: 163mm +/- 3mm
- Track-width backside: 170.6mm
Features:
back engine pod, framework
The strong foundation is done by the 2.5mm dense carbon fibre chassis meal created such technique your Lipo is set up in lateral directiom, and certainly will be mounted either kept or right part, and room enough for the valuable electronic devices. The alu / carbon motorpod is a beautifull mixture of good machined alu brackets and supreme quality carbon fibre elements, bolted together to produce an ultra stiff back pod. The newest motor-bracket enables the brushless engine become mounted inside perfect place for car security and will also be providing good temperature dissipation and .
Central shock absorber
to aid right back traction under acceleration also to absorb bumps, the S120 LT activities a centrally installed shock absorber. Provided with a soft springtime, the pre load that can be modified, the leading mount of this shock absorber can be used for adjusting a corner down end and range of movement in the middle of your framework and motor pod.The main surprise is set up on a shock-tower with several jobs available.
Rear ball differential
The S120 LT comes provided with a durable and powerful ball differential. Effectively modified by a synthetic nut, available through right rear wheel, the diff utilizes quality metal balls and dishes and it's also supplied with both suitable silicone and graphite oil for use during arranged and upkeep.The backside diff features hardened D-plates and light alu shaft construction for super smooth diff action.
back axle mounts
The lightweight graphite back axle is installed on bearings that sit within eccentric composite inserts that allows someone to power to quickly change a corner journey height linked to the vehicle by changing between inserts. The kit comes provided all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of are reversible for a straight wider selection of modification.
Servo saver
The S120 Link comes provided with a high quality miniature servo saver, which by using orange anodised shims, has adjustable Ackerman. The kit includes 2 alu servo posts, which permit a perfectly centered mounting of any popular brand name servo.the little foam bumper may also be included.
Body post
For firmly mounting our body shell to your S120 LT, the automobile has strong synthetic human anatomy articles front and back. All 4 articles are provided with orange anodised adjustable collars to correctly adjust the human body's height and articles are given extra lengthy to permit the buyer to cut them with their very own favored size. Leading human anatomy posts have also been built to assist protect leading of this carbon chassis from splitting in case there is much front effect.
core area
The springloaded side-bars, backlinks, are constructed of composite nylon and control the roll for the framework, alongside the pipelines as well as the primary central shock. Precision made springs and pivot balls.
the key part is a variety of elements to control the movements of a large part end perfectly
- a central main surprise, based on the famous Serpent RCCX technology; the shocktower allows different angles.
- the anodised alu pipelines on both edges
- 2 springtime packed shaped component bars
These elements communicate to create perfect management (roll, bump and positioning) under all grip-conditions.
Tube system
The S120-LT uses pipelines to controll the roll of the vehicle. This method plays a large component in the manner the automobile can be a large part that may be modified through utilization of different oils, 15.000 for normal hold and 20.000 for high hold songs.
Front end
the key end of automobile features 11 various adjustments to obtain the numerous from your vehicle, that are really easy to adjust and discover. Fixed reduced suspension system system arms are on their damped by the central strut helping to make usage of plastic o-rings to use up the flex of the type, although the grey anodised aluminium front upper wishbone mounts are available in various caster angles, the automobile being given 6 level versions as standard. Ride height spacers can be found too in 0.5mm and 1mm. Using the steering block master pins springtime loaded, the cornering forces are channelled through the upper wishbone, which make it possible for the vehicle to corner at high rates.
