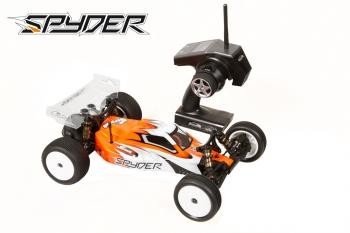

Spyder Buggy SRX-2 RM 2wd 1/10 RTR The RTR Spyder buggy is created regarding the high-end competition version of the Spyder RM buggy and stocks many components and geometry. All choice components of the competition version alsof fit the RTR variation. Main features - willing to race - Prepainted and precut buggy human anatomy - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless motor 9T - Expert factory installation and set-up - Dragon-RC premounted buggy tyres - springtime metal transmission - Gear differential and solid slipper
Specs:
- Vehicle: Spyder SRX-2 Back engine 2wd RTR
- Class: 1/10 buggy 2wd
- Level: Hobby / Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body fat: varies with gear utilized
- Not included: TX battery pack, automobile battery pack, charger
Features:
- willing to race
- Prepainted and precut buggy human body
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless motor 9T
- specialist factory put up and set-up
- Dragon-RC premounted buggy tyres
- complex composite framework and shocktowers
- Spring metal transmission components
- Gear differential and solid slipper
- effective race geometry
- back engine design
- Original steeringblock design
- Big bore 12mm RCM type shocks with double system
- Highly Efficient Steering ackermann
- Adjustable back differential height
- Narrow composite framework design
- minimal, cab ahead human being body
Chassis
Composite framework dish with a design allowing a fantastic fat stability, and optimal area for the electronic devices, battery power and servo. The key Kick-up angle within the Chassis includes more approval for race and permit for lots more nose landings
Composite front part and rear surprise towers. The thick composite surprise towers have actually multiple surprise angle roles allowing clients to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with coated threaded systems, an authentic limit design, a fantastically sealing o-ring and spacer package. The Shocks can be used in Bladder or Emulsion setups. The shock-set is sold with some moulded pistons to select from. A selection of springs-sets can be had to fine-tune the suspension system settings. Shock Collars with interior o-rings can be used about the threaded systems to set-ride height.
Front top bulkhead
the best top bulkhead is and supports the top of links and surprise tower into the perfect method. The best part offers the substitute for mount a front wing and sway club unit
Front wishbones
The front Wishbones are produced from a brilliant strong composite item. The hands are angled to optimize the CG and pivot on 3mm captured pins internally and away. The hands have in fact 2 mounting roles for surprise angle and so are prepared to utilize an optional anti-roll club if required.
Front and back Track Rods
Spring steel front side and right back track rods are installed to durable composite captured ball bones. The track Rods have actually L/R threading for effortless customizations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree variation that are included. The caster blocks are very compact and strong devices made from a certain composite product.
Steering Block and Rear Upright
The steering obstructs fit 5x10x4 mm bearings. A corner hub uprights use a far more significant 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and right back uprights utilize the most useful high power materials available today.
Upright Settings
The rear uprights allow you to adjust, the toe in from -2 to + 2 degrees by usage of various inserts additionally within the kit.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the effectiveness through various sorts of corners. You have got 3 Ackermann alternatives to pick from.
Wheel-axles and wheel hex.
The spring steel wheel-axles used 12mm hex adapter to adhere to current market demands. The leading springs metal axle is fixed, whilst the back wheel-hex is a clamping aluminium version.
Battery space mount and fat stability
The battery power is mounted completely inside center distinct the car, and may be relocated to front or back again to play with fat stability. Bits of difficult foam are supplied to do this and secure the battery constantly in place. The battery-top-brace has a secure quick release system with handy twist peanuts.
Differential
The gear-differential is an excellent compact, effective and durable product. The structure and construction is common type in this course, however the high quality parts and well functioning makes it is noticed. The height associated with the diff could be changed using the inserts.
Clutch
The car features a good slipper along with a metal gear, to possess an easy and durable system. The slipper clutch is optional.
Engine plate and engine guard
The motor meal is a machined aluminium; its then anodized and machined for fat. The composite engine guard can keep your motor safeguarded despite having the most challenging of landings.
Anti-roll pubs
Anti-roll pubs are fitted in leading and rear concerning the car, but are optional. They could be utilized on high hold areas to greatly help adjust the automobiles performance
Back Transmission instance
The composite rear transmission situation is light and durable. It allows the customer to modify the differential height every single certain condition. It securely holds the engine meal, differential as well as supports the rear wing mount and straight back carbon fibre shock tower.
Back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by both different size of bearings, internal 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is completely captured to prevent any failure. These bearings are for sure to manage up the rigors of any track condition.
Right back suspension system system brackets and toe in
The 3mm springtime steel pivot pins take place setup by the suspension bracket produced from aluminium. Inside the bracket you have inserts to set toe-in and roll center. You can adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 amounts.
Right back suspension system fingers
The long and durable angled straight back suspension system system arms are tough products to withstand the rigors about the track along with the hard landings. A corner supply provides 2 options for surprise position and two mounting areas the rear anti-roll bar if needed.
Back Chassis skid plate
The composite straight back skid plate links towards the framework dish. This connection allows you to unclip the rear end in one piece, but assists in easing the sum total cost of maintenance. It's also created from extremely high strength composite product.
Body shell and back wing
The prepainted and pere-cut light and low cab-forward design human body, built in quality clear polycarbonate, has a fantastic flowing line, steep front side windscreen for down force with indents in to the section while you're viewing windscreen. The shark fin on the roof regarding the cabin offers not only design but security. The smooth human body lines increase the automobiles look and try this any way you like
The polycarbonate back wing uses raised cutes inside sides to improve wheel clearance.
Back wing holder
The composite rear wing owner is from the rear bulkhead and surprise tower. Its completely adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.
Ballbearings
High speed sealed stainless ballbearings with orange shields and aeroshell oil
Fastners
Intense metal , mostly allen screws, roundhead and countersunk. Minimized quantity of different allen minds to make working on the auto easier.
Tires
Durable white nylon flat faced tires, specifically designed to utilize the advancements inside the front side and back suspension system geometry. Dragon-Rc offroad tyres premounted.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 vehicle memory, advanced level set-up opportunities, large LCD display. Along with supersmall receiver.
Powerful Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
The kit comes as RTR vehicle. Simply requires AA batteries the air and a battery for the automobile.
