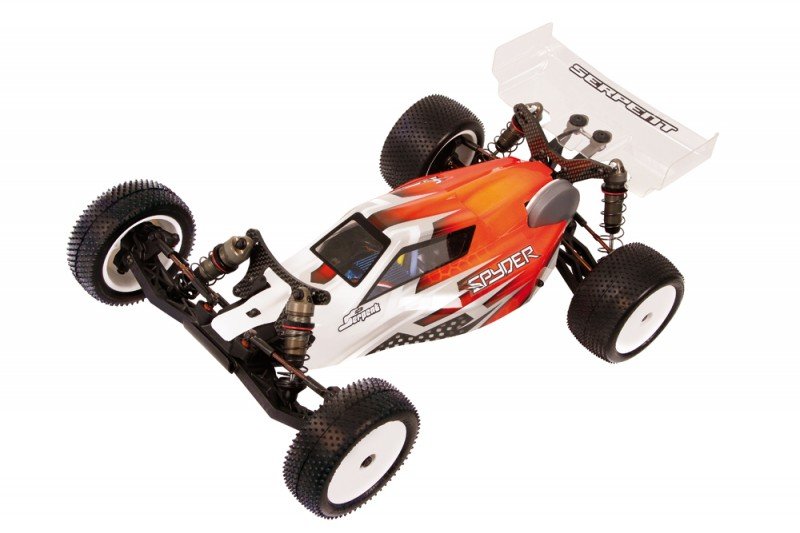

Spyder Buggy SRX-2 MM 2wd 1/10 Serpent MM MidMotor Spyder SRX-2 upper end competition buggy.The mid-motor variation is purpose built sharing many components alongside its backside motor relative. The theory was to build two condition certain designs, aided by the greatest degree of performance feasible. Motorists per competition should be able to select either variation, and certainly will not need to create any customizations at that time. Front end on both types is exact same, but framework and all types of buttocks differs a lot.
Needs:
- Course: 1/10 buggy 2wd
- Level: Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Weight: varies with gear utilized
Features:
- High performance race geometry
- Mid motor design
- Unique steeringblock design
- Big bore 12mm RCM type shocks with double system
- Innovative shocktower design
- certainly Effective Steering ackermann
- Adjustable backside differential height
- 3 pad slipper clutch
- Narrow composite chassis design
- Low, cab ahead human anatomy
Chassis
Composite framework dish with a design allowing an incredible fat stability, and optimal area the gadgets, battery pack and servo. Leading Kick-up angle into the Chassis includes more approval for competition and invite to obtain more nose landings. Carbon fibre front side and rear shock towers. The 4mm dense carbon fiber shock towers have actually numerous shock angle jobs allowing customers to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with difficult coated threaded numbers, a unique limit design, a fantastically sealing o-ring and spacer package. The Shocks is situated in Bladder or Emulsion setups. The shock-set comes with some moulded pistons available. A selection of 5 springs-sets can be acquired to fine-tune the suspension system system settings. Shock Collars with internal o-rings are employed on threaded systems to set-ride height.
Front top bulkhead
leading top bulkhead is and supports the top of links and shock tower in perfect method. The key component offers the replacement mount a front wing and sway club product
Front wishbones
the best Wishbones are produced from a fantastic strong composite item. The arms are angled to optimize the CG and pivot on 3mm captured pins inside and away. The fingers have actually 2 mounting functions for shock angle and therefore are prepared to take advantage of an optional anti-roll club if required.
Front and back Track Rods
Spring steel front and straight back track rods are installed to durable composite captured ball joints. The track Rods have actually L/R threading for simple alterations.
Castor blocks and settings
Caster block inserts come as 0, 2.5 and 5 degree variation being included. The caster obstructs are extremely compact and strong devices produced from a special composite item.
Steering Block and straight back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a more impressive 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights utilize the best high energy materials on the market.
Upright Settings
A corner uprights let you adjust, the toe in from -2 to + 2 amounts by usage of various inserts furthermore included in the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the efficiency through various different forms of corners. You've got 3 Ackerman alternatives available.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to stick to economy criteria. Leading springs metal axle is fixed, even though back wheel-hex is a clamping aluminum variation.
Battery area mount and fat stability
The battery power is mounted entirely inside center line of the car. Its a precise fit for saddle packages. In the event of utilizing a Shorty-pack, maybe it's relocated to front part or back in play with fat stability. Bits of hard foam are given doing for that reason and secure the battery pack in place. The carbon dietary fiber battery-top-brace has a secure fast release system with handy twist nuts.
Differential
The restricted slide ball differential is an excellent compact, effective and durable unit. Using 1.8th ins diff balls for ultimate durability. The dwelling and installation is common type in this course, however the excellent parts and well functioning might make it be noticed. The height of diff can be changed with inserts.
Engine meal and engine guard
The motor meal is a machined aluminum; its then anodized and machined for fat reduction.
Anti-roll bars
Anti-roll bars could possibly be built in the leading side and straight back related to automobile, but are optional. They could be utilized on high hold areas to simply help adjust the cars performance
Back Transmission instance
The composite rear transmission example is light and durable. Permits the customer to modify the differential height every single certain condition. Additionally firmly holds the motor plate, differential also supports the trunk wing mount and back carbon fibre surprise tower.
Back driveshaft system, wheel-axles
The spring metal drive shafts are slim and light, yet durable. The springtime metal wheel-axles are 5mm, light and durable, led by the 2 different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is wholly captured to prevent any failure. These bearings are for several to stand up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime steel pivot pins happen in place by the suspension system bracket produced from aluminum. In the bracket you employ inserts setting toe-in and roll center. You are able to adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 degrees.
Straight back suspension system fingers
The Mid Motor specific long and durable angled back suspension system hands have grown to be tough products to withstand the rigors the track and also the difficult landings. A corner supply provides 2 alternatives for surprise place and two mounting areas the trunk anti-roll club if needed.
Back Chassis skid dish
The composite straight back skid meal links towards the framework meal. This connection lets you unclip the trunk end up in one piece, but helps reduce the total price of maintenance. Additionally it is created from incredibly high energy composite material.
Body shell and rear wing
The light and low cab-forward design human anatomy, stated in top quality clear polycarbonate, has outstanding flowing line, high front side windscreen for down force with indents in part while you're watching windscreen. The shark fin on the top the cabin offers not just design but security. The smooth body lines enhance the cars look and accomplish that any way you like
The polycarbonate straight back wing uses raised cutes in to the edges to improve wheel approval.
Back wing owner
The composite back wing owner is linked to the trunk bulkhead and shock tower. It really is completely adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.
Ballbearings
tall speed sealed stainless steel ballbearings with aeroshell oil
Fastners
Tricky metal , mostly allen screws, roundhead and countersunk. Minimized level of various allen minds to help make concentrating on the car easier.
Wheels
Durable white nylon flat faced tires, created specifically to work with the advancements inside front part and back suspension geometry.
The kit comes full of body and wheels, color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
