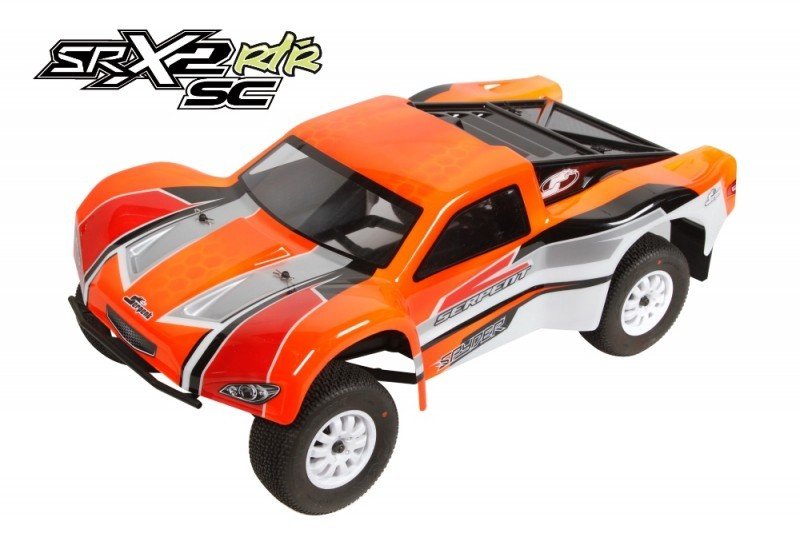

Spyder SCT SRX-2 RM 2wd 1/10 RTR The RTR Spyder SCT will depend on the high-end competition form of the Spyder SCT and stocks numerous components and geometry. All choice regions of the competition variation alsof fits the RTR variation. Principal features - prepared to race - Prepainted and precut SC body - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless engine 9T - professional factory installation and set-up - Dragon-RC premounted SCT tyres - springtime metal transmission - Gear differential and solid slipper clutch
Specs:
- Automobile: Spyder SCT 2wd RM
- Course: SCT 2wd
- Degree: Competition
- Length:: 540mm ( with body)
- Width:: 295mm (varies with set-up)
- Height:: 190mm
- Wheelbase:: 330mm
- Gear Ratio:: 2.43:1
- Weight:: differs with electronics used
- Included: Body, tires
- Maybe maybe not included: Batteries, tyres, any electronics.
Features:
- willing to fight
- Prepainted and precut SC human anatomy
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless engine 9T
- professional factory set up and set-up
- Dragon-RC premounted SCT tyres
- Spring steel transmission
- Gear differential and solid slipper clutch
- higher end battle geometry
- long wishbones
- Unique steeringblock design
- Big bore 12mm RCM kind shocks with dual system
- Highly Effective Steering ackermann
- Wide side guards
- straight back motor design
- Narrow composite chassis design
- Light SC body
Framework
Composite framework plate with a design permitting a great weight security, and optimal space the electronic devices, battery and servo. Leading Kick-up angle inside Chassis includes more approval for racing and allow for much more nose landings.
Durable composite front and rear surprise towers, with numerous shock angle positions allowing motorists to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with coated threaded systems, an authentic cap design, a fantastically sealing o-ring and spacer package. The Shocks can be utilized in Bladder or Emulsion setups. The shock-set comes with a set of moulded pistons to choose from. An array of 5 springs-sets can be acquired to fine-tune the suspension system settings. Shock Collars with inner o-rings are used regarding threaded systems to set-ride height.
Front top bulkhead
Leading top bulkhead supports the upper links and shock tower inside most readily useful feasible method. The best part provides the choice to mount a front sway club item
Front bumper system
The durable composite front bumper system will soak up the worst of directly crashes and can permit salvage nose landing.
Front wishbones
The long front side Wishbones are manufactured from a fantastic strong composite material. The arms are angled to optimize the CG and pivot on 3mm captured pins inside and away. The fingers have actually 2 mounting jobs for shock angle and are usually often prepared to make use of an optional anti-roll club if required.
Front and back Track Rods
Spring metal front side and right back track rods are installed to durable composite captured ball joints. The track Rods have actually L/R threading for easy alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level version which are included. The caster obstructs are particularly compact and strong devices made from a particular composite product.
Steering Block and back Upright
The steering obstructs fit 5x10x4 mm bearings. A large part hub uprights utilize a bigger 5x14x4 outer bearing and 10x15x4 mm inner for ultimate lasting performance. The steering blocks and backside uprights use on the list of better high power materials available today.
Upright Settings
a large part uprights permit you to adjust, the toe in from -2 to + 2 levels by using various inserts also within the kit.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the effectiveness through all different forms of corners. You've got 3 Ackermann choices to select from.
Wheel-axles and wheel hex.
The spring steel wheel-axles utilized 12mm hex adapter to see market criteria. The front springs steel axle is fixed, since the back wheel-hex is a clamping aluminium variation.
Battery space mount and fat stability
The battery pack is installed completely in center type of the automobile. Its a precise complement saddle packages. In the event of making use of a Shorty-pack, it might be relocated to front side or back to play with fat stability. Items of difficult foam are offered doing therefore and secure the battery power constantly in position. The carbon fibre battery-top-brace has a secure quick launch system with handy alu twist nuts.
Part guards
The side-guards or nerv-bars are a forward thinking construction. The sideguards are produced wide, therefore it supports the edges related to body well. The interior of this guards can be obtained, and will be full of optional polycarbonate sheets. In jumps with SC vehicles you have the ballooning effect, as wind is captured within the body, losing stability. The shut part about the Serpent Spyder SC will mostly avoid that from happening, creating better balanced bouncing and much more security. The precut polycarbonate sheets come clear and can be painted in yr favourite color scheme too !
Differential
The gear-differential is an excellent lightweight, effective and durable unit. The dwelling and construction is typical key in this program, nevertheless the quality components and well functioning can certainly make it get noticed. The height concerning the diff can be changed with optional inserts.
Clutch
the automobile features a fantastic slipper in conjunction with a steel gear, to possess a simple and durable system. The slipper clutch is optional.
Motor plate and engine guard
The motor meal comes in anodized aluminium.
Anti-roll pubs
Anti-roll pubs can be built in leading side and back of vehicle, but are optional. They could be applied to high hold areas to further adjust the automobiles performance
Rear Transmission situation
The composite back transmission situation is light and durable. Permits the motorist to regulate the differential height each and every certain condition. Furthermore firmly holds the engine plate, differential along with supports the rear wing mount and rear shock tower.
Right back driveshaft system, wheel-axles
The springtime metal drive shafts are slim and light, yet durable. The spring steel wheel-axles are 5mm, light and durable, guided by the two different size of bearings, internal 10x14x4 mm and exterior 5x13x4 mm. The driveshaft pin is fully captured in order to avoid any failure. These bearings are for certain to face up the rigors of any track condition.
Rear suspension system system brackets and toe in
The 3mm spring steel pivot pins take place in position by the suspension bracket created from aluminium. Inside the bracket you employ inserts establishing toe-in and roll center. You are going to adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 degrees.
Straight back suspension hands
The long and durable angled rear suspension system hands are particularly tough devices to withstand the rigors of track and difficult landings. A large part supply provides 2 options for surprise position and two mounting places a corner anti-roll bar if required.
Rear Chassis skid plate
The composite back skid dish links toward chassis meal. This connection allows you to unclip a corner end in one piece, but assists in easing the sum total price of upkeep. Additionally it is produced from incredibly high power composite product.
Back bumper
The rear bumper part is a truly durable product, an easy task to disassemble, and fits well utilising the backside linked to the human anatomy, to soak up the worst of back-end crashes.
Body shell and rear wing
The prepainted and precut light practical searching brief Course design human body, built in high quality clear polycarbonate, has a fantastic flowing line, steep front side windscreen for down force . The split flares into the back part help for security in jumps, high rate and cornering.
Ballbearings
High speed sealed metal ballbearings with aeroshell oil
Fasteners
Intense steel , mostly allen screws, roundhead and countersunk. Minimized range different allen minds to produce taking care of the automobile easier.
Wheels
Durable white Serpent Short Course tires and premounted Sc tyres.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 vehicle memory, higher rate set-up possibilities, big LCD display. In conjunction with supersmall receiver.
Effective Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
