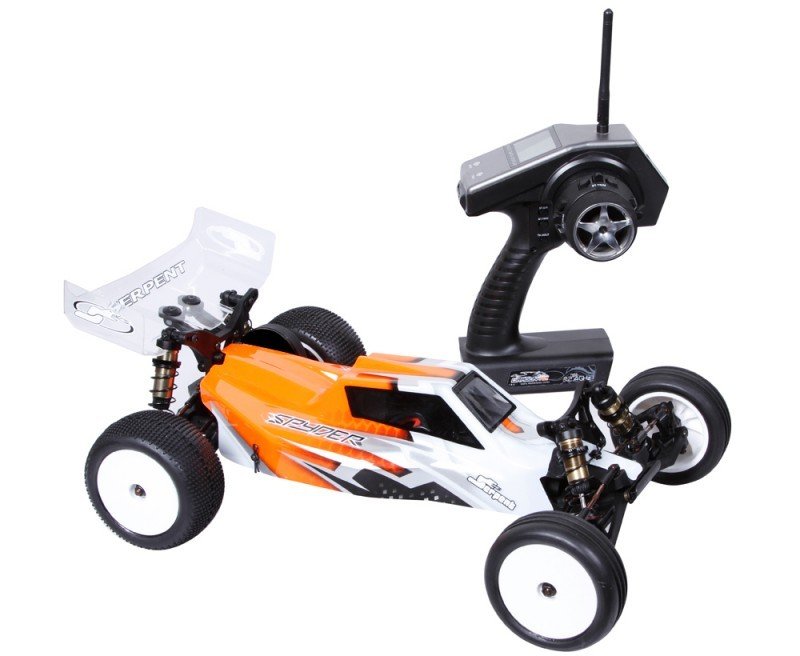

Spyder Buggy SRX-2 MM 2wd 1/10 RTR The RTR Spyder buggy will depend on top of the end competition kind of the Spyder Mid motor MM buggy and shares many elements and geometry. All option components of the battle variation alsof fit the RTR version. Principal features - ready to race - Prepainted and precut buggy body - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless engine 9T, 3000kv - Expert factory construction and set-up - Dragon-RC premounted buggy tyres - springtime steel transmission - Gear differential and solid slipper
Specifications:
- Vehicle: Spyder SRX-2 Mid Engine 2wd RTR
- Class: 1/10 buggy 2wd
- Degree: Hobby / Competition
- Length: 385mm
- Width: is different with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body weight: is different with gear used
- Not included: TX battery pack, automobile battery, charger
Features:
- Willing to competition
- Prepainted and precut buggy human body
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless engine 9T
- Expert factory construction and set-up
- Dragon-RC premounted buggy tyres
- tricky composite framework and shocktowers
- Spring metal transmission components
- Gear differential and solid slipper
- powerful competition geometry
- Rear motor design
- Unique steeringblock design
- Big bore 12mm RCM kind shocks with dual system
- noteworthy Steering ackermann
- Adjustable back differential height
- Narrow composite framework design
- Low, cab ahead peoples anatomy
Framework
Composite framework dish with a design enabling a perfect fat stability, and optimal space the electronics, battery and servo. Leading Kick-up angle inside Chassis includes more approval for race and invite for much more nose landings
Composite front and straight back surprise towers. The dense composite surprise towers have many shock angle roles allowing customers to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with coated threaded systems, an authentic limit design, an incredibly sealing o-ring and spacer package. The Shocks can be utilized in Bladder or Emulsion setups. The shock-set includes some moulded pistons to select from. An array of springs-sets can be obtained to fine-tune the suspension system settings. Shock Collars with internal o-rings are utilized on threaded numbers to set-ride height.
Front top bulkhead
The leading top bulkhead is and supports the top of links and surprise tower in greatest means. The leading area provides the replacement mount a front wing and sway bar product
Front wishbones
the leading Wishbones are produced from a fantastic strong composite material. The arms are angled to optimize the CG and pivot on 3mm captured pins internally and away. The hands have 2 mounting jobs for shock angle plus they are prepared to use an optional anti-roll club if needed.
Front and straight back Track Rods
Spring steel front side and rear track rods are mounted to durable composite captured ball bones. The track Rods have really L/R threading for easy modifications.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation all of which are included. The caster obstructs are really compact and strong devices produced from a distinctive composite material.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. A corner hub uprights utilize a more substantial 5x14x4 exterior bearing and 10x15x4 mm inner for ultimate lasting performance. The steering blocks and backside uprights utilize among the list of better high energy materials currently available.
Upright Settings
A corner uprights let you adjust, the toe in from -2 to + 2 degrees by using different inserts also inside the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various different kinds of corners. You've got 3 Ackermann alternatives to pick from.
Wheel-axles and wheel hex.
The springtime steel wheel-axles used 12mm hex adapter to adhere to current market requirements. The front springs steel axle is fixed, as the back wheel-hex is a clamping aluminium variation.
Battery space mount and fat balance
The battery power is set up perfectly in the center type of the car, and will also be moved to front side or back once again to play with fat stability. Items of difficult foam are provided to do so and secure the battery pack constantly set up. The battery-top-brace has a secure fast launch system with handy twist peanuts.
Differential
The gear-differential is a brilliant lightweight, effective and durable device. The dwelling and installation is typical enter this class, but the quality parts and well operating makes it be noticed. The height associated with diff is changed because of the inserts.
Clutch
the vehicle features a good slipper along with a metal gear, to possess an easy and durable system. The slipper clutch is optional.
Motor dish and engine guard
The engine plate is a machined aluminium; it is then anodized and machined for fat. The composite motor guard will keep your motor safeguarded even after the most difficult of landings.
Anti-roll pubs
Anti-roll bars may be fitted regarding front and straight back of the automobile, but are optional. They may be used on high hold surfaces to simply help adjust the cars performance
Back Transmission case
The composite back transmission case is light and durable. Permits your client to modify the differential height every single particular condition. Also firmly holds the engine meal, differential and supports the trunk wing mount and straight back carbon fibre shock tower.
Right back driveshaft system, wheel-axles
The springtime metal drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by both different size of bearings, interior 10x14x4 mm and outer 5x13x4 mm. The driveshaft pin is completely captured to avoid any failure. These bearings are let me make it clear to handle up the rigors of any track condition.
Straight back suspension system brackets and toe in
The 3mm springtime metal pivot pins are held in position by the suspension system bracket made out of aluminium. Within the bracket you utilize inserts to set toe-in and roll center. You are able to adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 levels.
Back suspension system hands
The long and durable angled straight back suspension fingers are particularly tough devices to withstand the rigors of this track as well as the hard landings. The trunk supply offers 2 options for shock place and two mounting locations the backside anti-roll bar if needed.
Back Chassis skid meal
The composite straight back skid plate links towards chassis plate. This connection allows you to unclip a large part end up in one piece, but assists in reducing the total cost of maintenance. It is also created from extremely high energy composite material.
Body shell and back wing
The prepainted and pre-cut light and low cab-forward design body, integrated quality clear polycarbonate, has a fantastic flowing line, high front part windscreen for down force with indents inside area during the windscreen. The shark fin on top associated with the cabin provides not merely style but security. The smooth human body lines increase the cars look and repeat this however you like
The polycarbonate right back wing uses raised cutes inside sides to enhance wheel approval.
Rear wing owner
The composite rear wing owner is linked to a large part bulkhead and shock tower. Its totally adjustable from 0,2,4,6 and 8 levels. Its fixed into destination by a washers and screws.
Ballbearings
Tall rate sealed metal ballbearings with orange shields and aeroshell oil
Fastners
Rough steel , mostly allen screws, roundhead and countersunk. Minimized amount of different allen minds to make caring for the vehicle easier.
Tires
Durable white nylon flat faced tires, specifically designed to work with the advancements in the front side and rear suspension geometry. Dragon-Rc offroad tyres premounted.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 car memory, high rate set-up possibilities, big LCD display. In conjunction with supersmall receiver.
Powerfull Dragon-RC 9T brushless / sensorless engine.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
The kit comes as RTR vehicle. Simply calls for AA batteries the radio, a battery the car and a charger.
