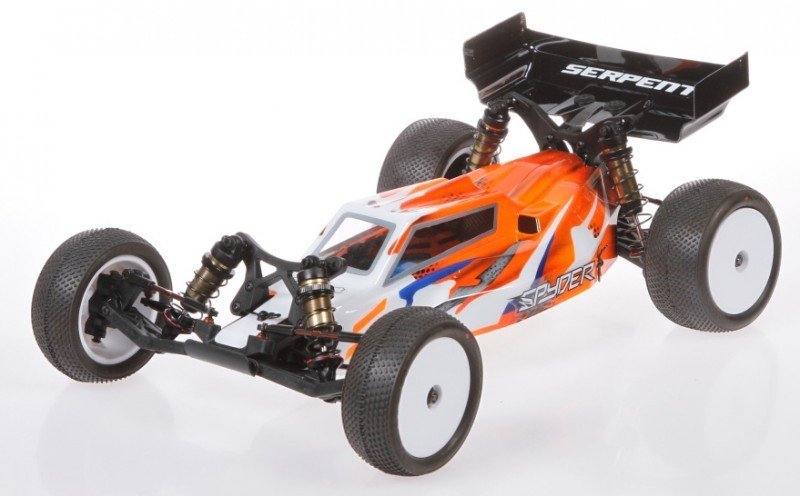

Spyder SRX2 Mid Hybrid 1/10 2wd The SRX2 MH key features - coated aluminium framework with seperate aluminium kick-up dish - 2 transmissions included: 3-gear standing and 3-gear laydown ( 4-gear standing and 4-gear laydown are optional) - big bore shocks - ball differential - slipper clutch - adjustable carbon battery pack brace - buggy 2wd MH human anatomy and big back wing
Specs:
- Vehicle: Spyder SRX-2 MidHybrid 2wd
- Class: 1/10 buggy 2wd
- Degree: Competition
- Length: 385mm
- Width: varies with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body weight: differs with gear used
- Included: battle chassis, human anatomy, back wing, rims
- Maybe maybe not included: tyres, tyre-inserts, electronic devices
Features:
- High performance competition geometry
- Narrow anodised aluminium 7075 T6 framework design with composite sideguards / stiffeners and seperate aluminium kick-up dish
- Upright transmission / engine design with light 3 gear transmission
- Laydown transmission / motor design with light 3 gear transmission
- very efficient steering Ackermann
- Big bore 12mm hardcoated shocks with twin system
- Composite shocktower design for extra hold and durability
- Smooth ball-differential ( gear-diff optional)
- 3 pad slipper clutch
- Composite battery power owner
- Low, cab ahead human body
- Durable and efficient suspension system system front and rear
The SRX2 MH kit is definitely a 2 in 1 vehicle, as Serpent provides 2 sort of transmission in kit from which to choose. 1 x 3-gear upright transmission for low to moderate traction = LMT 1 x 3-gear laydown transmission for medium to high traction = MHT
The Spyder SRX2 LMT ( minimum to moderate traction) will perform most readily useful at low grip and medium traction songs like yard, sand and clay. ( For super low traction Serpent provides the Spyder SRX2 back Motor kit).
The Spyder SRX2 MHT ( medium to high-traction) will perform well at medium to high traction songs like carpeting, astro and high hold clay.)
Framework
Coated and laser engraved 7075 T6 aluminium framework dish with a layout enabling a fantastic fat stability, and optimal area the gadgets, battery pack and servo. The aluminium front side kick-up meal is split and angled for substantially more approval for race and invite for better nose landings. ( the separate kick-up dish allows you to additionally install the optional carbon chassisplate).
Transmission
The SRX2 MH kit is in fact a 2 in 1 vehicle, as Serpent offers 2 type of transmission inside kit to pick from.
1 x 3-gear upright transmission for low to moderate traction = LMT
1 x 3-gear laydown transmission for medium to high traction = MHT
Serpent provides some upgrade sets to fit a 4 gear upright transmission system, or a 4 gear laydown transmission aswell.
Shocktowers
Composite front part and straight back shock towers. The shock towers have many shock angle jobs permitting drivers to fine-tune for varying track conditions. The optional carbon versions permit some extra tightness to help with overall hold.
Shock absorbers
Double system 12mm big bore shocks with hardcoated threaded systems, an original cap design, a fantastically sealing o-ring and spacer package. The shocks may be used in bladder or emulsion setups. The shock-set is sold with a collection of moulded pistons to choose from. Numerous 5 springs-sets can be acquired to fine-tune the suspension system settings. Shock collars with inner o-rings are employed on the threaded systems to set-ride height.
Front upper bulkhead
Leading top bulkhead is strong and supports the top of links and surprise tower inside best means. Leading part offers the substitute for mount a front wing and sway club unit
Front wishbones
The wishbones are manufactured from a brilliant strong composite product. The gullwing arms to optimize the CG and pivot on 3mm captured pins inside and away. The hands have actually 2 mounting functions for shock angle as they are often ready to utilize an optional anti-roll bar if required.
Front and Rear Track Rods
Spring metal front and back track rods are set up to durable composite captured ball bones. The trackRods have actually actually L/R threading for easy alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree version which are included. The caster obstructs are incredibly compact and strong units produced from a certain composite product.
Battery space mount and fat balance
The battery is set up completely in center distinct the vehicle. In case of utilizing a Shorty-pack, it could be relocated to front or back once again to play with fat security. Components of hard foam are provided to do this and secure the battery pack set up. The carbon dietary fiber battery-top-brace has a secure quick release system with handy twist peanuts and certainly will act as a chassis stiffener too. The flex may be effects by utilizing 2 small grubscrews. With all the upright
Differential
The restricted slide ball differential is a brilliant compact, effective and durable device. Using 1.8th inches diff balls for ultimate durability. The dwelling and put up is typical key in this course, but the good quality components and well operating makes it is noticed.
Slipper clutch
The durable slipperclutch utilizes a 3-pad system with resilient pads, difficult anodised aluminium parts and springsteel shaft. The pre-load nut can be easily reached and set.
Motor dish and motor guard
The engine plate is a machined aluminium; its then anodized and machined for fat loss.
Anti-roll pubs
Anti-roll pubs are fitted regarding front side and rear concerning the car, are optional. They can be put on high hold areas to simply help expand adjust the automobiles performance
Back Transmission example
The composite back transmission instance is light and durable. It securely holds the motor plate, differential plus supports the rear wing mount and backside surprise tower.
Rear driveshaft system, wheel-axles
The spring metal drive shafts are slim and light, yet durable. The springtime metal wheel-axles are 5mm, light and durable, directed by the 2 various size of bearings, internal 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is completely captured to prevent any failure. These bearings are for sure to handle up the rigors of any track condition.
Straight back suspension brackets and toe in
The 3mm springtime metal pivot pins take place set up by the suspension bracket produced from aluminium. Within the bracket you utilize inserts to create toe-in and roll center. You are able to adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 amounts.
Rear suspension system hands
The long and durable straight back suspension system hands have grown to be tough devices to withstand the rigors regarding the track and also the difficult landings. The trunk supply provides 2 options for surprise destination and two mounting places for the back anti-roll bar if required.
Body shell and back wing
The light and low cab-forward style body, stated in quality clear polycarbonate, has a nice moving line, steep front side windscreen for down force with indents in the section while you're watching windscreen. The shark fin on the top of this cabin provides not simply design but stability. The smooth human body lines enhance the cars look and accomplish that in whatever way you want
The polycarbonate straight back wing utilizes raised cutes to the edges to enhance wheel approval.
Right back wing owner
The composite back wing holder is attached to the rear bulkhead and surprise tower. It's fully adjustable from 0,2,4,6 and 8 amounts. Its fixed into location by a washers and screws.
Ballbearings
tall speed sealed metal ballbearings with oil.
Fasteners
Rough steel , mostly allen screws, roundhead and countersunk.
Tires
Durable white nylon flat faced tires, specifically designed to work with the advancements inside front side and rear suspension geometry.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the effectiveness through various different varieties of corners. You've gotten 3 Ackermann choices.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to stick to market requirements. Leading springs metal axle is fixed, even though the back wheel-hex is a clamping aluminium variation.
Steering Block and Rear Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a bigger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and rear uprights use among the better high power materials available today.
Upright Settings
a corner uprights allow you to adjust, the toe in from -2 to + 2 amounts by usage of various inserts additionally within the kit.
